| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST302 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Communication: | RS232 | Working Environment: | Indoor / Outdoor ( Shelter) |
| High Light: | Permanent Magnet Motor Swing Turnstile Gate,DC24V Swing Turnstile Gate,RS232 Speed Turnstile Gate |
||

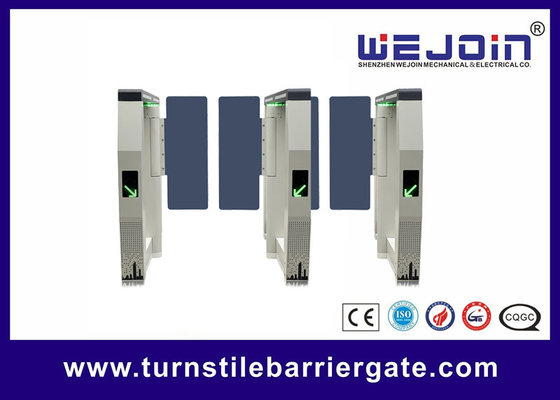

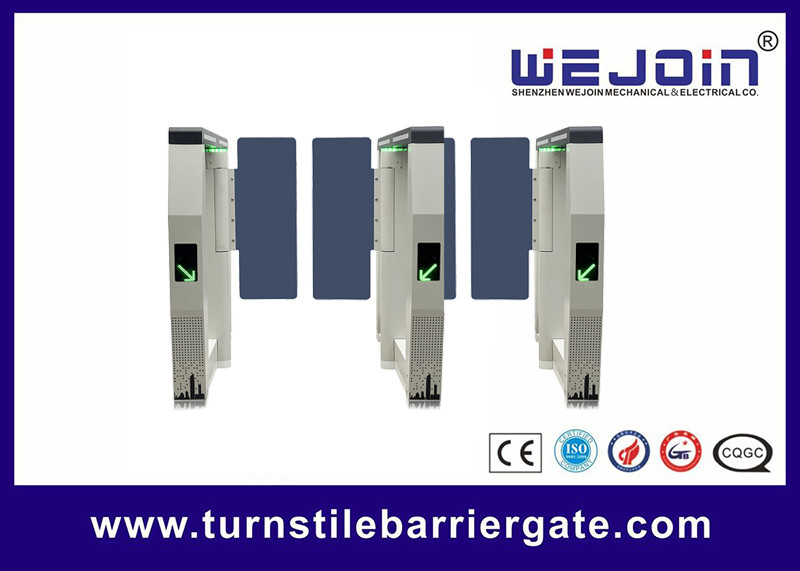

Swing Gate Turnstile Swing Turnstile Speed Gate with DC permanent magnet motor
Swing Barrier Brief Introduction
The intelligent swing barrier is a brand-new product of WEJOIN Company. Swing barrier is a hi-tech product for pedestrian access control. WEJOIN swing barrier has features of precise craftsmanship, comprehensive functions, and high technology. It has applications in high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues.
Swing barrier is the combination of machinery, electronics, CPU control, and a variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the swing barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, and direction indicators to realize the intelligent management of access control.
Swing barrier motors can be classified into the single motor and double motors. The single one is used for a single lane and the double one is used for multi- lanes.
Swing Barrier Gate Features and Functions
|
Wing |
Acrylic or tempered glass is optional, shape, size, or color can be customized. |
|
RS232 Communication Module |
Support |
|
Modbus Protocol |
Support |
|
Voice Function |
Support |
|
Trumpet |
Optional |
|
DC12V Backup Battery |
Optional |
Speed Gate Technical Data
1. Cabinet material: 304# stainless steel
2. Power supply: AC220V±15%, 50HZ or AC110V±15%, 60Hz
3. Motor voltage: DC 24V
4. Max flow rate: 30~40 people per minute
5. Motor Power: 50W
6. Opening & Closing Speed: 0.2~1 seconds adjustable
