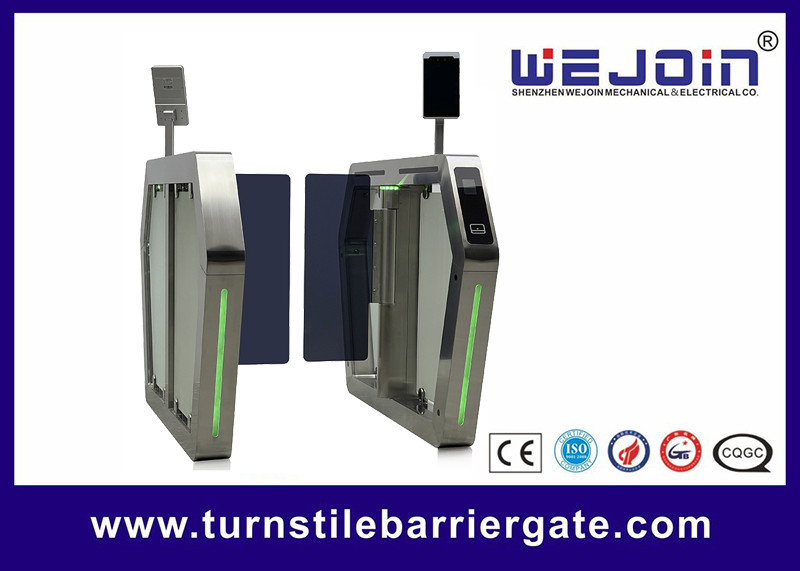

Servo control system fast and stable operation swing barrier gate
Swing Barrier Specifications
1 |
Working Temperature |
-25℃~+70℃ |
2 |
Input Voltage of Power Supply |
AC110/220V±10% |
3 |
Input Voltage of Controller |
DC24V ±10% |
4 |
Working Voltage of Motor |
DC24V |
5 |
Motor Power |
50W |
6 |
Relative Humidity |
90% (no condensation) |
7 |
Material of Cabinet |
304 stainless steel, sheet metal spraying process |
8 |
Width of Passage |
600~1100mm (a pair) |
9 |
Opening & Closing Speed |
0.2~1 seconds adjustable |
10 |
MTBF |
10,000,000 times |
Speed Gate Main Features
1. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
2. Fast and stable operation, the fastest opening speed can reach 0.2 seconds.
3. Self-adaptive anti-push function without traditional clutch anti-push mode, adopting high transformation ratio gearbox, increasing torque for strengthening resistance, reducing the failure rate and cost pressure caused by adding more components, and increasing the stability of the product.
4. The exquisite product design, not only meets the longer life service, but also reduce the difficulty of the maintenance, and ensures the traffic capacity of high pedestrian volume areas under quick overhaul, maintenance, and repair situation.
5. Opening and closing speeds are adjustable.
6. Support RS232 communication module and Modbus protocol.
7. Support voice function, trumpet is optional.
8. Automatic opening when power off, DC12V backup battery is optional.
Common Malfunctions and Solutions
The power supply is connected, but parts of the system or the whole system are powered off.
A.Check whether the 220V AC power socket is well connected or not.
B.Check whether the power output terminal and control board is well connected or not.
C.Check whether the fuse on the control board is broken or not.
