| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST303 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Relative Humidity: | ≤90% | Application: | Office\School\Airport\Subway\Outdoor |
| High Light: | 1100mm Automatic Swing Barrier,Pedestrian Automatic Swing Barrier,Anti Push Pedestrian Security Turnstiles |
||

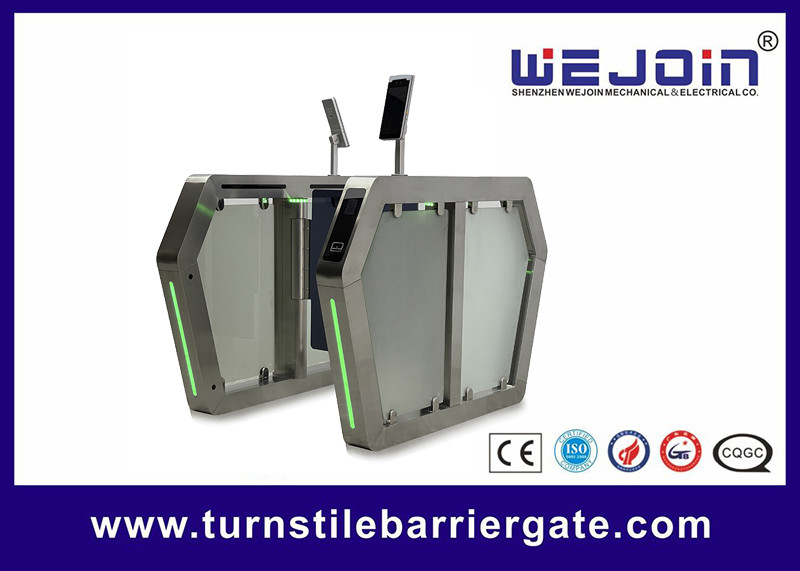

Servo control system pedestrian access control automatic swing barrier
Speed Gate Main Features
|
1 |
Motor |
Self-developed tubular two-stage planetary gear reducer structure, driven by DC permanent magnet motor, compact structure, large torque, low noise, and wear resistance. |
|
2 |
Control System |
The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life. |
|
3 |
Technology |
Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience. |
|
4 |
Anti-push |
Self-adaptive anti-push function, high transformation ratio gearbox, increasing torque for strengthening resistance and stability, reducing the failure rate and cost pressure. |
|
5 |
Wing |
Acrylic or tempered glass optional, shape, size, or color can be customized. |
Swing Barrier Specifications
1. Working Temperature: -20℃～+70℃
2. Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V ±10%
4. Working Voltage of Motor: DC24V
5. Motor Power: 50W
6. Relative Humidity: 90% (no condensation)
7. Material of Cabinet: 304 stainless steel, sheet metal spraying process
8. Width of Passage: 600~1100mm (a pair)
9. Opening & Closing Speed: 0.3~1 seconds adjustable
10. MTBF: 5,000,000 times
