Electric Turnstile Price Flap Barrier, Sliding Flap Turnstile Gate

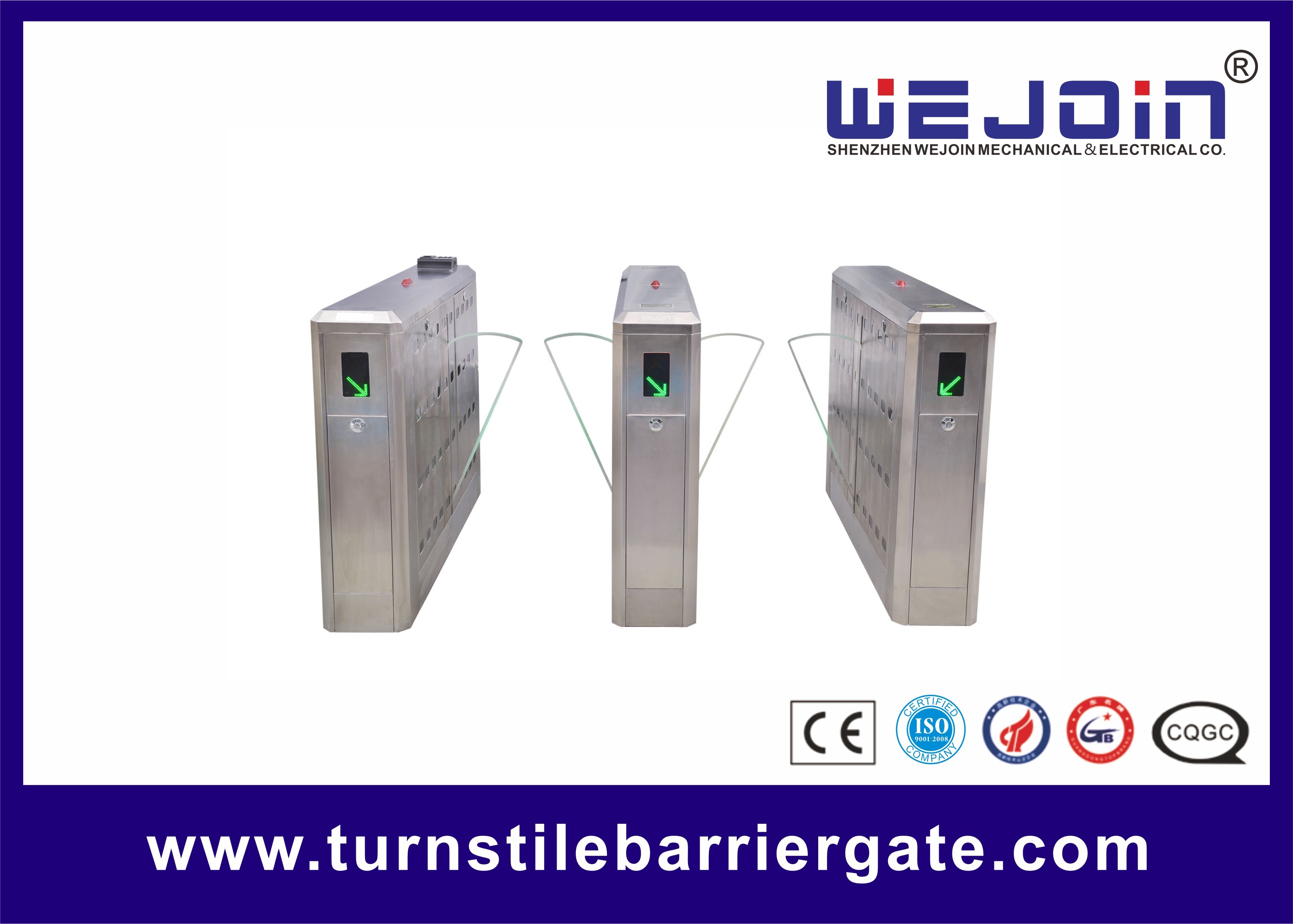

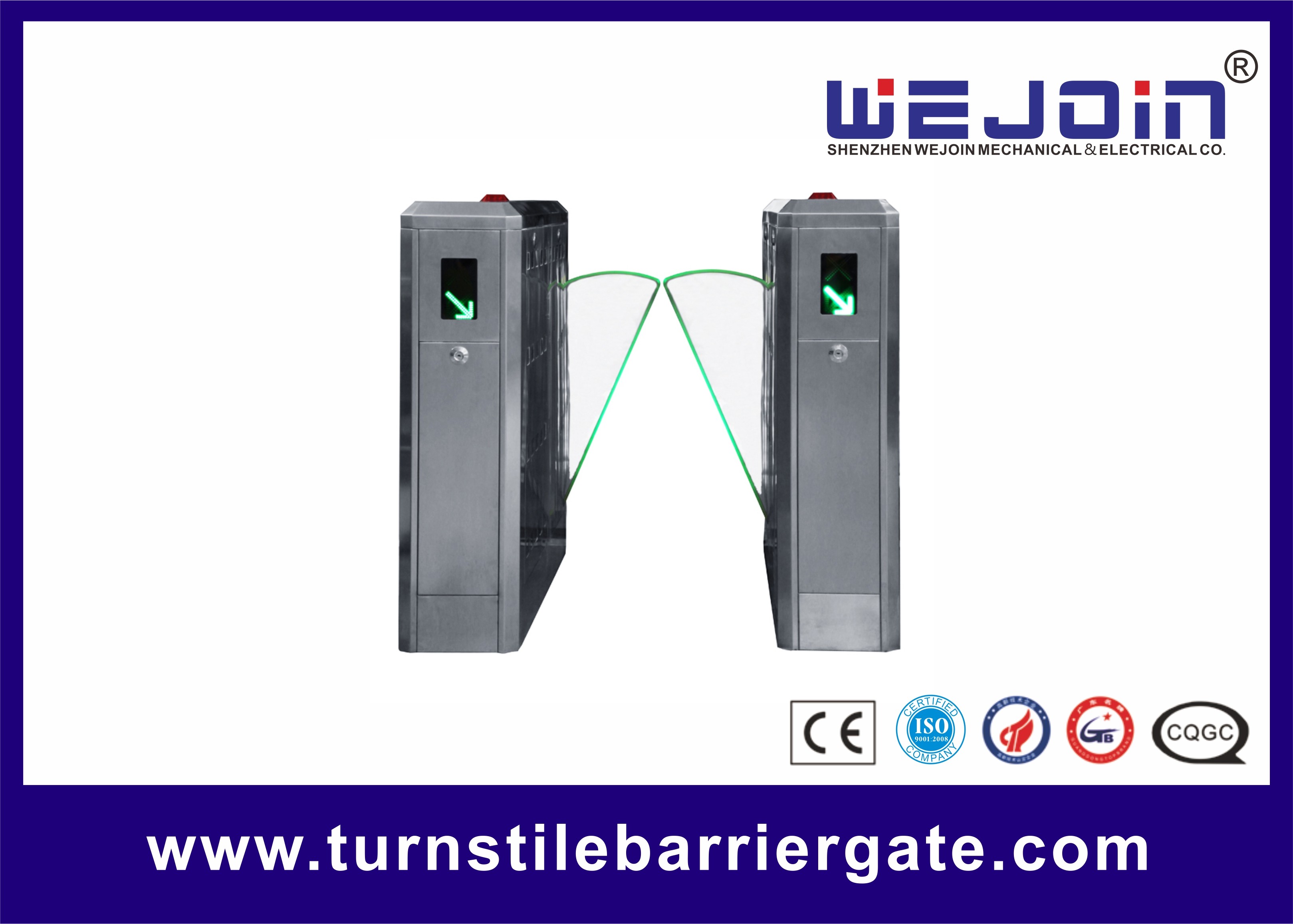

Flap turnstile:
Flap turnstile (barrier) is a high-tech product aimed at the pedestrian access intelligent management, which is an upgraded product based on intelligent tripod turnstile, swing barrier. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligetilized control and management.
Functions and characteristics: | |
1.being able to program running status by the small keyboard in the main board | |
2.Preventing pedestrians from being nipped and from hurt | |
3.Light and sound alarm function including the illegal in and the tail | |
4.Doors are automatically locked until opening signal is received. | |
5.Doors synchronization (adjustable) | |
6.Automatically reset function: It will automatically lock if the pedestrian has not pass through the channel in the pre-set time after the opening. The passing time is adjustable | |
7.Automatically open the gate when power off and automatically close when power on | |
8.Several card readers are attachable, relay out signal can be received | |
9.One direction or bi-direction is optional | |
10.It can be directly controlled and managed by remote control. |
APPLICATIONS: | |
1.The station, wharf, tourist attraction, entrance and exit management channel of factory | |
2.Recount channel management of exhibition, swimming pool, etc | |
3.Time attendance, access control, consumption management for enterprise or business unit | |
4.Special channel management system |
Technical Specifications:
1. Housing matrial: 304 grade stainless steel or painted steel(thickness:1.5mm)
2. Flap wing: acrylic glass, or resin, or PVC
3. Net weight: 70kgs/unit
4. Dimension:1450*270*1000mm
5. Barrier wing: length 275mm
6. Standard passage width: 600mm
7. Power supply: 220V±10%, 110± 10%
8. Motor: DC12V
9. Input interface: dry contact signal or 12V electric level signal or DC12V pulse signal with width of more than 100ms, driving current: >10mA
10. Normal life-span: 3 million times
12. Transit speed: 30-40 persons/min
13. Opening/Closing time:0.5 second
14. Starting time after power is on: 3 seconds
15. Automatic reset time after fault: 10 seconds
16. Working environment: indoor, outdoor(with a tent over)
17. Working temperature:-25°C-50°C
18. Relative humidity:≤90% no condensation
Mechanism:
