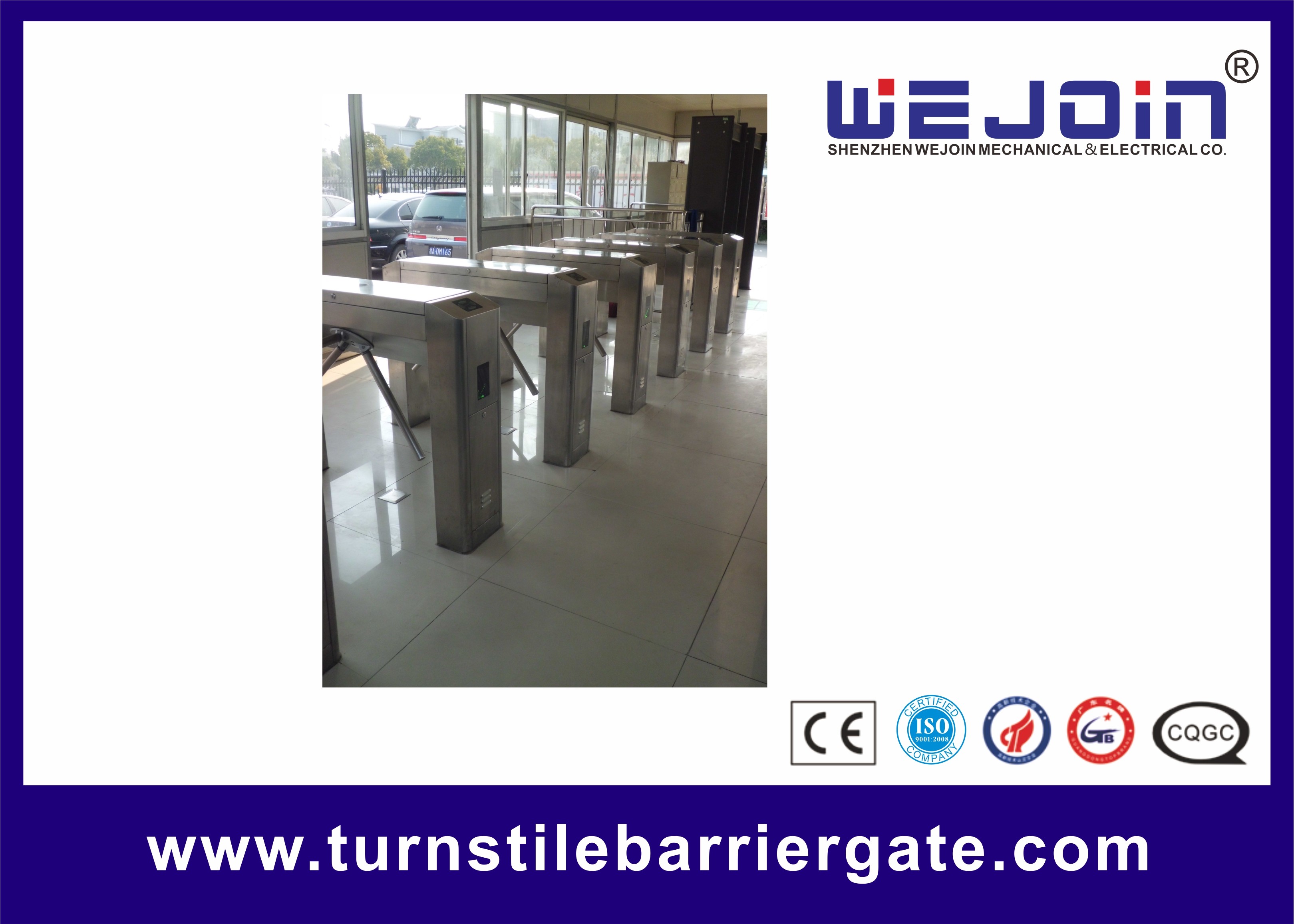

Full auto pedestrian access control Tripod Turnstile Gate 3kg Arm Driving Force

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: ISO 9001:2008,CE,
Model Number: WJTS122
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T,Western Union
Supply Ability: 1,000 set/month
Detail Information
Driving Motor: DC Motor Power Supply: 220V/ 110V±10%
Transit Speed: 30~40 Person/min Housing Material: Stainless Steel 304
Rotating Direction: Double Direction Frequency: 50/60HZ
High Light:

pedestrian barrier gate

,

security entrance gates

,

Tripod Turnstile Gate Double Direction


Product Description



Full auto pedestrian access control Tripod Turnstile Gate 3kg Arm Driving Force





Function and Features:



1. Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2. All the system runs stable with little noise and no mechanical impact
3. It can self-check and alarm which will be make it convenient to use
4. Several ways of working molds can be chosen at your request
5. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7. Beam can be lifted and fall when electricity is cut-off
8. It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9. Can be connected to bi-directional traffic lights, and the red and green colors can show the passing status
10. The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11. Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.1. After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request
13. The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14. You can set the function with or without card-reading memory according to your requirement

Specifications:



Model
Item
WJTS122 WJTS112 WJTS110 WJTS111
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel Iron with Powder
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000 1235×280×1000 1235×280×1000 420×380×1050
Length of Pole (out of housing) 490mm
Net Weight 50kg 70kg 70kg 45kg
Driving Force of Pole 3KG
Rated Power 50W
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Max Load-bearing of Pole 80KG
Driving Motor DC Motor
Input Interface DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%



Applications:



The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service:



1 year warranty

Lifetime Service with charge accordingly



Preview Detail:

  • Barrier Gate Core:unique rotationpan with special technical design
  • Control Board:precise and durable
  • Workshop:professional and seriously
  • Prouduct assembly:careful and safe

Full auto pedestrian access control Tripod Turnstile Gate 3kg Arm Driving Force 0
