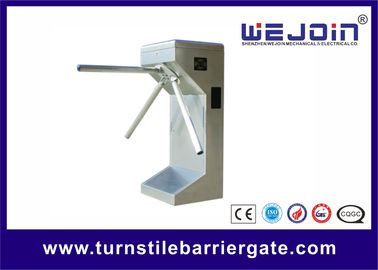

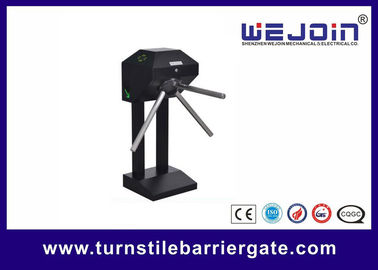

Subway Station Vertical Type Electric Double Turnstile Mechanism
Turnstile Barrier Gate Quick Detail:
Name | Semi-utomatic Tripod turnstile | Rated Power | 36W |
Power Supply | 220V±10%, 110V±10% | Transit Speed | 30~40 persons/min |
Driving Motor | Brushless DC Motor | Rotating Direction | Double Direction |
Turnstile Barrier Gate Function and Features:
1. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism
2. Passable for bi-direction
3. Self-locking within 5 seconds if there is no one passing after signal activation
4. Arm auto dropping when power off and manually put the arm up when power on
5. Person counter output is available to indicating passenger quantity; the pulse is 200MS
6. Able to avoid unauthorized access
7.Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.
8. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation
9. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V
10.Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.
Turnstile Barrier Gate Specifications:
Model Item |
WJTS111S | |||
Manual, Semi or Full-automatic | Semi-automatic | |||
Material of Housing | Iron with Powder | |||
Thickness of Housing | 1.50mm | |||
Dimension of Housing (L×W×H mm) |
420×380×1050 | |||
Length of Pole (out of housing) | 490mm | |||
Net Weight | 35kg | |||
Max Load-bearing of Pole | 80kg | |||
Driving Force of Pole | 3KG | |||
Rotating Direction | Double Direction | |||
Power Supply | 220V±10%, 110V±10% | |||
Frequency | 50/60HZ | |||
Working Voltage of Motor | DC12V | |||
Rated Power | 36W | |||
Driving Motor | Brushless DC Motor | |||
Input Interface | dry contact with the pulse between 200ms~500ms | |||
Transit Speed | 30~40 persons/min | |||
Working Temperature | -40°C~55°C | |||
Working Environment | Indoor / Outdoor (Shelter) | |||
Relative Humidity | ≤95% |
Turnstile Barrier Gate Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
Turnstile Barrier Gate After-sale Service:
1 year warranty
Lifetime Service with charge accordingly
Turnstile Barrier Gate Assembly:
Turnstile Barrier Gate Package Preview:
