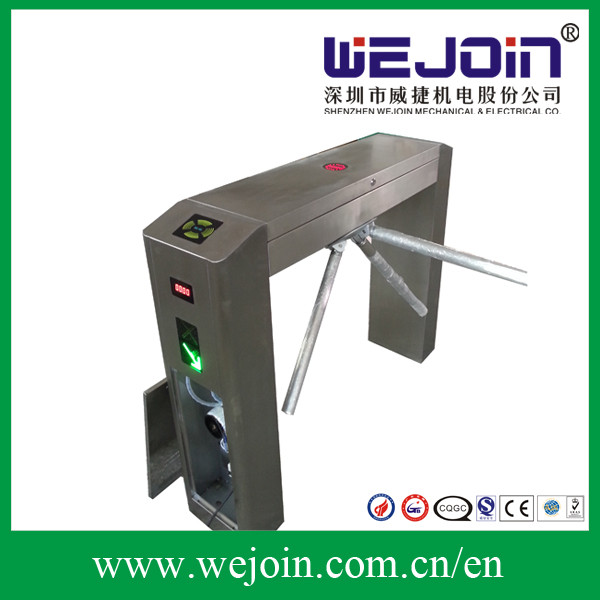

1, Name: Automatic Tripod turnstile
2, Frequency:50/60HZ
3, Working environment:Indoor / Outdoor (Shelter)
4, Driving Motor:DC Motor
5, Application: BRT station
6, Power Supply:220V±10%, 110V±10%
7, Housing material:Stainless Steel 304/ Iron with Powder
8, Rotating Direction:Double Direction
1.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2.All the system runs stable with little noise and no mechanical impact
3.Equipped with automatic fault detection, easy to maintain and use
4.Several ways of working molds can be chosen at your request
5.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7.The arm will automatically drop when power-off
8.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
10.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.1.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request
13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14.You can set the function with or without card-reading memory according to your requirement
Specifications:
Model Item | WJTS122 | WJTS112 | WJTS110 | WJTS111 |
Manual, Semi or Full-automatic | Full-automatic | |||
Material of Housing | 304 Stainless Steel | Iron with Powder | ||
Thickness of Housing | 1.50mm | |||
Dimension of Housing (L×W×H mm) | 420×380×1000 | 1235×280×1000 | 1235×280×1000 | 420×380×1050 |
Length of Pole (out of housing) | 490mm | |||
Net Weight | 50kg | 70kg | 70kg | 45kg |
Power Supply | 220V±10%, 110V±10% | |||
Driving Force of Pole | 3KG | |||
Rotating Direction | Double Direction | |||
Transit Speed | 30~40 persons/min | |||
Frequency | 50/60HZ | |||
Working Voltage of Motor | DC12V | |||
Rated Power | 50W | |||
Driving Motor | DC Motor | |||
Input Interface | DC12V electrical leveel signal, more than 100ms, or DC12V impulse signal driveing current, more 10mA | |||
Max Load-bearing of Pole | 80kg | |||
Working Temperature | -40°C~55°C | |||
Working Environment | Indoor / Outdoor (Shelter) | |||
Relative Humidity | ≤95% |
