Auto Half Height Pedestrian Access Control Tripod Turnstile Gate 30 ~ 40 person / min

1set
MOQ
negotiation
Price
Auto Half Height Pedestrian Access Control Tripod Turnstile Gate 30 ~ 40 person / min
Features Gallery Product Description Request A Quote
Features
Specifications
Length Of Pole: 490mm
Driving Force: 3KG
Frequency: 50/60HZ
Rotating Direction: Double Direction
Transit Speed: 30~40 Persons/min
Driving Motor: DC Motor
Highlight:

turnstile security systems

,

speed gate systems

,

Tripod Turnstile Gate 40 person / min

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: ISO 9001:2008,CE,
Model Number: WJTS111
Payment & Shipping Terms
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T,Western Union
Supply Ability: 1,000 set/month
Trade Terms: EX works,CIF
Product Description

 Auto Half Height Pedestrian Access Control Tripod Turnstile Gate 30 ~ 40 person / min





Quick Detail:





  • Name;Automatic Tripod turnstile
  • Power Supply:220V±10%, 110V±10%
  • Frequency:50/60HZ
  • Driving Motor:DC Motor
  • Housing material:Stainless Steel 304/ Iron with Powder
  • Rotating Direction:Double Direction





Function and Features:





1. Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2. All the system runs stable with low noise and no mechanical impact
3. It can self-check and alarm which will be make it convenient to use
4. Several ways of working molds can be chosen at your request
5. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6. Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
7. Beam can be lifted and fall when electricity is cut-off
8. It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9. So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
10. The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11. Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
12. You can set the function with or without card-reading memory according to your requirement
13. The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14. After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request





Specifications:





Model
Item
WJTS122 WJTS112 WJTS110 WJTS111
Manual, Semi or Full-automatic Full-automatic
Material of Housing 304 Stainless Steel Iron with Powder
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000 1235×280×1000 1235×280×1000 420×380×1050
Length of Pole (out of housing) 490mm
Net Weight 50kg 70kg 70kg 45kg
Power Supply 220V±10%, 110V±10%
Rotating Direction Double Direction
Driving Force of Pole 3KG
Max Load-bearing of Pole 80kg
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 50W
Driving Motor DC Motor
Input Interface DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%





Applications:





The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations,shopping mall,workshop, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.





After-sale Service:





1 year warranty

Lifetime Service with charge accordingly





Preview Detail

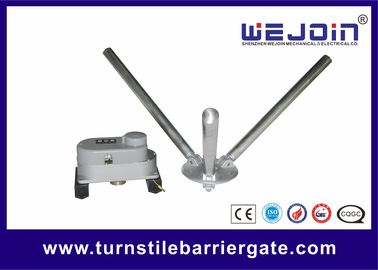

1. Barrier Gate core:full-auto tripod turnstile barrier gate with motor

2. Arm:length is 490mm

3. High-technology control board

4. Work:High quality promised

5. Safer packing

Auto Half Height Pedestrian Access Control Tripod Turnstile Gate 30 ~ 40 person / min 0
