Pedestrian Gate Access Control Systems Tripod Turnstile Gate Full Auto Bridge Type

1set
MOQ
negotiation
Price
Pedestrian Gate Access Control Systems Tripod Turnstile Gate Full Auto Bridge Type
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 36W
Working Temperature: -40°C~55°C
Transit Speed: 30~40 Persons/min
Driving Motor: Brushless DC Motor
Working Environment: Indoor / Outdoor (Shelter)
Relative Humidity: ≤95%
Highlight:

pedestrian security gates

,

pedestrian access control

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJTS112S
Payment & Shipping Terms
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Trade Terms:: Ex works, CIF,FOB
Product Description

Electronic auto pedestrian gate access control systems for high level hotel



The Application of Tripod Turnstiles

Tripod turnstiles are widely used. They are commonly installed in subway stations, enhancing security and controlling passenger flow. In office buildings, they manage access, ensuring only authorized personnel enter. Their reliable operation makes them a popular choice in various public and private spaces.



Function and Features:

1. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V

2. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

3. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens

4. Able to avoid unauthorized access

5. Person counter output is available to indicating passenger quantity; the pulse is 200MS

6.Arm auto dropping when power off and manually put the arm up when power on

7. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

8.Self-locking within 5 seconds if there is no one passing after signal activation.

9. Passable for bi-direction

10.A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism



Specifications:

Model
Item
WJTS112S
Manual, Semi or Full-automatic Semi-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
1235×280×1000
Length of Pole (out of housing) 490mm
Net Weight 70kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 36W
Driving Motor Brushless DC Motor
Input Interface dry contact with the pulse between 200ms~500ms
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%



After-sale Service:

1 year warranty

Lifetime Service with charge accordingly



Detail Preview:

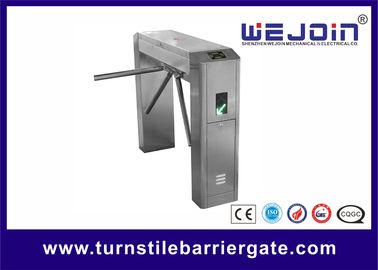

Pedestrian Gate Access Control Systems Tripod Turnstile Gate Full Auto Bridge Type 0
