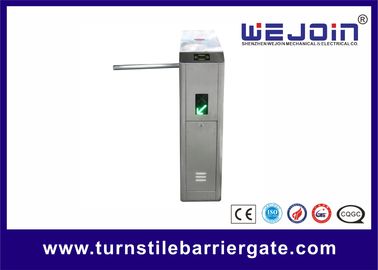

Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier

1set
MOQ
negotiation
Price
Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 36W
Driving Motor: Brushless DC Motor
Transit Speed: 30~40 Persons/min
Power Supply: 220V±10%, 110V±10%
Working Temperature: -40°C~55°C
Working Environment: Indoor / Outdoor (Shelter)
Highlight:

turnstile entry systems

,

pedestrian access control

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJTS112S
Payment & Shipping Terms
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Trade Terms:: Ex works, CIF
Product Description

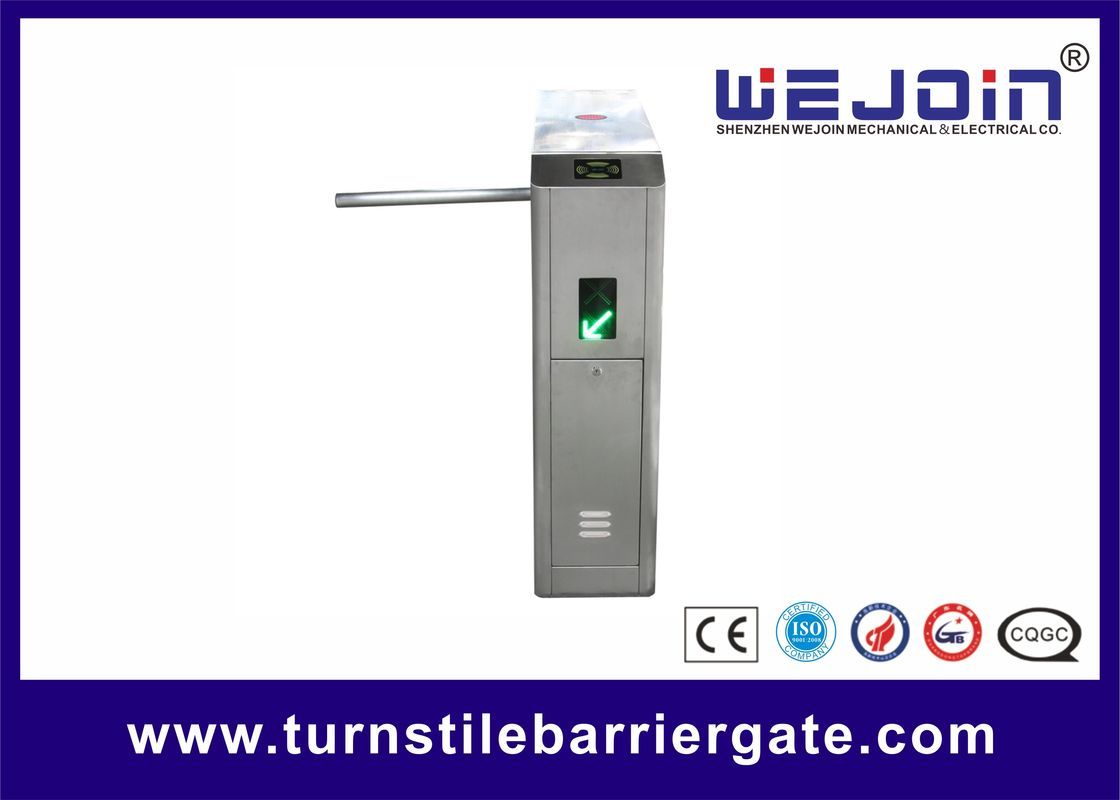

Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier



Function and Features:

▲. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

▲. Passable for bi-direction

▲. Self-locking within 5 seconds if there is no one passing after signal activation

▲. Arm auto dropping when power off and manually put the arm up when power on

▲. Person counter output is available to indicating passenger quantity; the pulse is 200MS

▲. Able to avoid unauthorized access

▲. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation. ▲.Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

▲. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

▲. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V



Specifications:

Model
Item

WJTS112S

Manual, Semi or Full-automatic

Semi-automatic

Material of Housing

304 Stainless Steel

Thickness of Housing

1.50mm

Dimension of Housing
(L×W×H mm)

1235×280×1000

Length of Pole (out of housing)

490mm

Net Weight

70kg

Max Load-bearing of Pole

80kg

Driving Force of Pole

3KG

Rotating Direction

Double Direction

Power Supply

220V±10%, 110V±10%

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

36W

Driving Motor

Brushless DC Motor

Input Interface

dry contact with the pulse between 200ms~500ms

Transit Speed

30~40 persons/min

Working Temperature

-40°C~55°C

Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity

≤95%



Applications:

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



Auto Security Tripod Turnstile Barrier Gate / pedestrian Intelligent barrier 0
