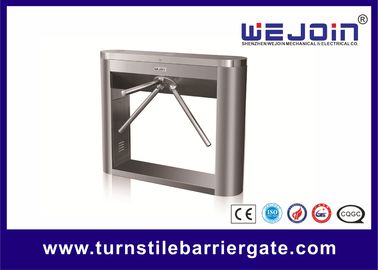

Waist High Tripod Turnstile Barrier Gate Stainless Steel For Restaurants , Hotel

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJTS110S
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Material: Stainless Steel Shape: Bridge-type
Volt: 220V /110V Rated Power: 36W
Roataing Direction: Double Direction Frequency: 50Hz/60Hz
High Light:

turnstile entry systems


pedestrian security gates

Product Description

Waist High Tripod Turnstile Barrier Gate Stainless Steel for Restaurants, Hotel etc


Quick Detail:


Semi-utomatic Tripod turnstile

Driving Motor

Brushless DC Motor

Power Supply

220V±10%, 110V±10%

Transit Speed

30~40 persons/min

Rated Power


Rotating Direction

Double Direction


Function and Features:

▲. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

▲. Passable for bi-direction

▲. Self-locking within 5 seconds if there is no one passing after signal activation

▲. Arm auto dropping when power off and manually put the arm up when power on

▲. Person counter output is available to indicating passenger quantity; the pulse is 200MS

▲. Able to avoid unauthorized access

▲. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation.

▲.Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

▲. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

▲. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V





Manual, Semi or Full-automatic


Material of Housing

304 Stainless Steel

Thickness of Housing


Dimension of Housing
(L×W×H mm)


Length of Pole (out of housing)


Net Weight


Max Load-bearing of Pole


Driving Force of Pole


Rotating Direction

Double Direction

Power Supply

220V±10%, 110V±10%



Working Voltage of Motor


Rated Power


Driving Motor

Brushless DC Motor

Input Interface

dry contact with the pulse between 200ms~500ms

Transit Speed

30~40 persons/min

Working Temperature


Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity




The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
