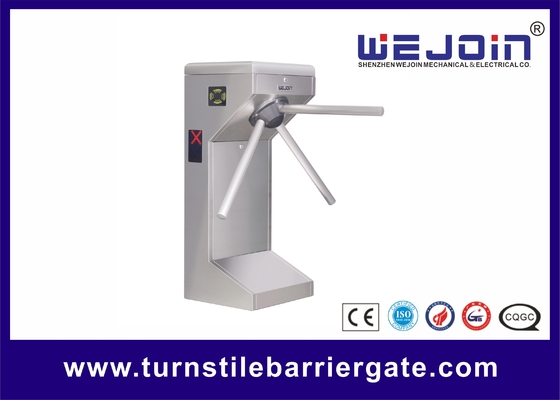

Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJTS112S/WJTS122S/WJTS110S/WJTS111S
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Contact Now
Detail Information
Name: Tripod Turnstile Driving Motor: DC Motor
Length Of Pole: Length Of Pole Relative Humidity: ≤95%
Working Environment: Indoor / Outdoor (Shelter) Frequency: 50/60HZ

Product Description

Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management



Turnstile Barrier Gate Quick Detail:

Name: Semi-automatic Tripod turnstile

Driving Motor: Brushless DC Motor

Power Supply: 220V±10%, 110V±10%

Transit Speed: 30~40 persons/min

Rated Power: 36W

Rotating Direction: Double Direction



Turnstile Barrier Gate Function and Features:

[1]. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

[2]. Passable for bi-direction

[3]. Self-locking within 5 seconds if there is no one passing after signal activation

[4]. Arm auto dropping when power off and manually put the arm up when power on

[5]. Person counter output is available to indicating passenger quantity; the pulse is 200MS

[6]. Able to avoid unauthorized access

[7]. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

[8]. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

[9]. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

[10]. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V



Turnstile Barrier Gate Specifications:

Model
Item

WJTS122S

WJTS110S

WJTS112S

WJTS111S

Manual, Semi or Full-automatic

Semi-automatic

Material of Housing

304 Stainless Steel

Iron with Powder

Thickness of Housing

1.50mm

Dimension of Housing
(L×W×H mm)

420×380×1000

1235×280×1000

1235×280×1000

420×380×1050

Length of Pole (out of housing)

490mm

Net Weight

40kg

70kg

70kg

35kg

Max Load-bearing of Pole

80kg

Driving Force of Pole

3KG

Rotating Direction

Double Direction

Power Supply

220V±10%, 110V±10%

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

36W

Driving Motor

Brushless DC Motor

Input Interface

dry contact with the pulse between 200ms~500ms

Transit Speed

30~40 persons/min

Working Temperature

-40°C~55°C

Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity

≤95%



Turnstile Barrier Gate Applications:

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service:

1 year warranty

Lifetime Service with charge accordingly



Package Preview:

Supermarket Safety Tripod Turnstile Barrier Gate for Customers Access Management
