Alarm High Speed Retractable Flap Barrier Auto Detection Flap Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY202
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Detail Information
Mechainsm Dimension: 254*205*855mm Max Lane: 600mm
Driving Motor: DC12V Brush Motor Running Time: 0.5s
Speed: Adjustable Photocell: Yes
High Light:

optical turnstile


half height turnstile

Product Description

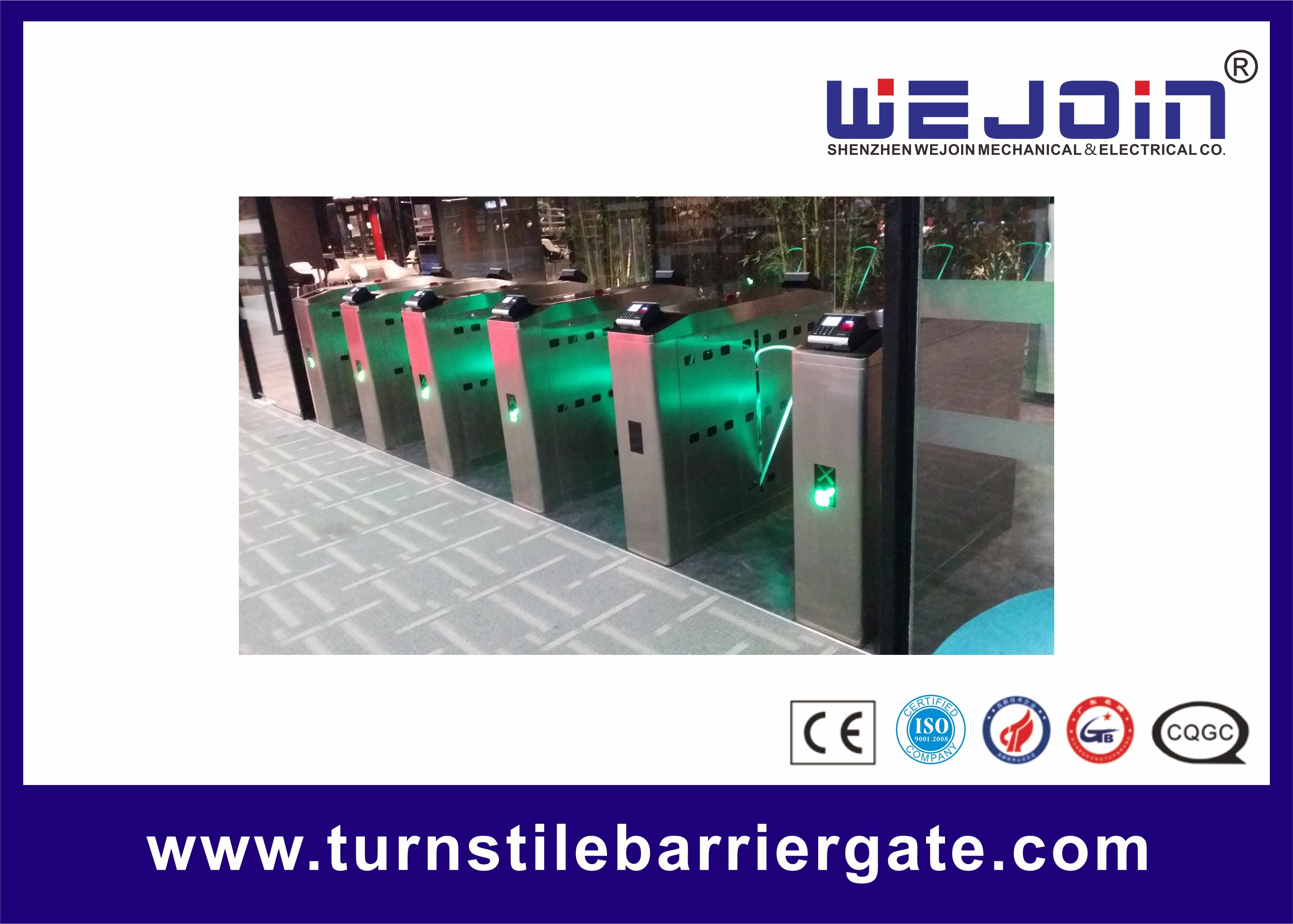

Alarm High Speed Retractable Flap Barrier Auto Detection Flap Gate





1.Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.

2.It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3.Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

4.Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.




High class communities, intelligent buildings, hotels, subway stations and other high level venues.


Functions and features:

1. With function of self-examine and alarm, it is convinient for maintain and use.

2. Being able to program operation state by the small keyboard in the main board.

3. Arm will stop moving when it is blocked, which prevents pedestrains from being nipped or from hurt.

4. Arms are automatically locked until opening signal is reveiced.

5. Arms synchronization(adjustable).

6. Light and sound alarm is generated when the illegal invasion and the tail followed.

7. Automatically reset function: it will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.

8. The arms automatically open when power off and automatically colse when power is on, which accords with fire-fingting’s requirement.

9. Several reader devices are attachable.(IC,IkeD access control, fingerprint access control, barcode ticket access control, ficial identification access control, time attendance machine ect.)

10. One ditectin/bi-direction are option.




Model WJTY202
Stretching-out flap length 275mm
The max lane width 600mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Organic glass
Housing of thickness 1.5mm
Normal Life Span 3 millions times
Communication Interface Standard RS485(distance less than 1200 meters)
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation
