| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST301 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Relative Humidity: | ≤90% | Application: | Office |
| High Light: | WEJOIN Swing Barrier Gate,50W Swing Barrier Gate,50W swing turnstile gate |
||

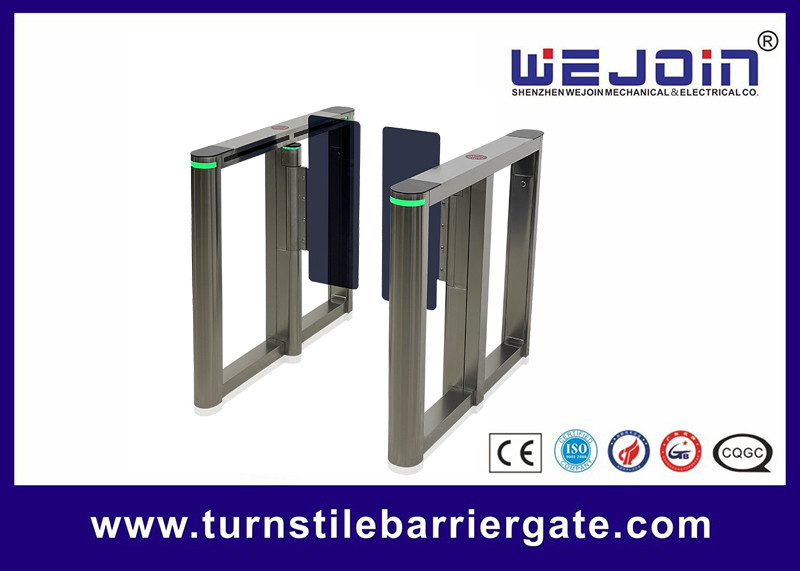

High Speed Swing Barrier Gate Access Control With Servo Motor 50W
High Speed Gate Access Control Automatic Swing Barrier with Servo Motor
Swing Barrier Gate Working Environment Parameters
1. Working Temperature: -20℃ ~ 70℃
2. Input Voltage of Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V
4. Motor Power: 50W
5. Relative Humidity: 90% (no condensation)
6. Width of Passage: 600~1100mm (a pair)
7. Opening & Closing Speed: 0.2~1 seconds adjustable
8. MTBF: 10,000,000 times
Speed Gate Main Features and functions
|
1 |
RS232 Communication Module |
Support Modbus Protocol |
|
2 |
Modbus Protocol |
Support |
|
3 |
Voice Function |
Support |
|
4 |
Trumpet |
Optional |
|
5 |
Opening when power off, DC12V Backup Battery |
Optional |
Swing Barrier Profile
1. The system adopts servo control technology and detects the motor position in real-time.
2. Physical anti-pinch protection.
3. Sensitivity can be adjustable.
4. Supports access mode settings such as card reader, free, and forbidden at entrances and exits.
5. It has access logic detection such as illegal intrusion, trailing passing, detention, reverse passing, and infrared anti-pinch.
