| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST301 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Application: | Office | Type: | Auto |
| High Light: | 50W Swing Gate Turnstile,WEJOIN Swing Gate Turnstile,SS304 Turnstile Entry Systems |
||

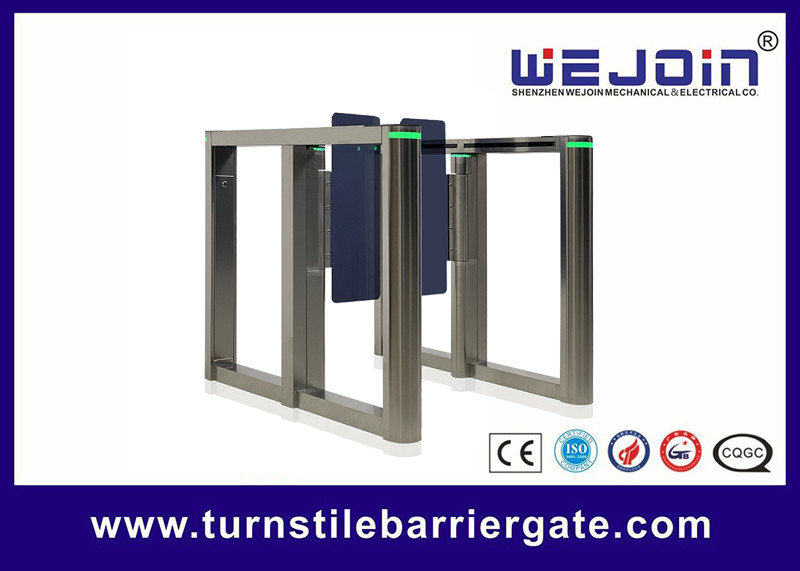

High Speed Swing Gate Turnstile Entry Systems 50W For Office
Smart High-Speed Pedestrian Control Electronic Swing Barrier Turnstile Gate
Speed Gate Main Features and functions
|
1 |
RS232 Communication Module |
Support |
|
2 |
Modbus Protocol |
Support |
|
3 |
Voice Function |
Support |
Swing Barrier Gate Working Environment Parameters
1. Working Temperature: -20℃ ~ 70℃
2. Input Voltage of Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V±10%
4. Motor Power: 50W
5. Relative Humidity: 90% (no condensation)
6. Width of Passage: 600~1100mm (a pair)
7. Opening & Closing Speed: 0.2~1 seconds adjustable
8. MTBF: 10,000,000 times
1. WEJOIN swing barriers have a compact electro-mechanical design with a unique drive which ensure product durability and silent operation and the self-lock mechanism can also well protect the access control security.
2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customers to maintain and operate.
3. Thirdly, WEJOIN swing barriers have input interfaces that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different systems, like card readers, ticket systems, token systems, etc.
4. Fourthly, WEJOIN swing barriers have an auto delay closing function, an Alarm for unauthorized access, and no access against passenger flow.
5. Fifthly, WEJOIN swing barriers have an audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. Sixthly, the WEJOIN swing barriers input interface is available for dry contact and switch signal connection.
