| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST301 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Type: | Auto | Communication: | RS232 |
| High Light: | DC24V Barrier Swing Gate,1100mm Barrier Swing Gate,1100mm swing gate turnstile |
||

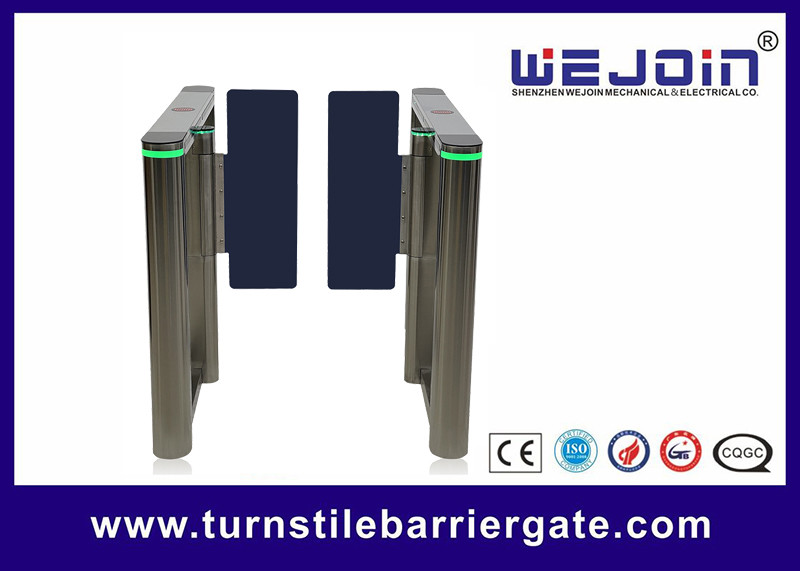

Pedestrian Security Automatic Barrier Swing Gate 1100mm For Indoor
Pedestrian Security Automatic Barrier Swing Gate for Indoor and Outdoor
Speed Gate Main Features and functions
| 1 | Motor | Self-developed tubular two-stage planetary gear reducer structure, driven by DC permanent magnet motor, compact structure, large torque, low noise, and wear resistance. |
| 2 | Control System | The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life. |
| 3 | Technology | Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements, and have a better experience. |
| 4 | Anti-push | Self-adaptive anti-push function, high transformation ratio gearbox, increasing torque to strengthen resistance and stability, reducing the failure rate and cost pressure. |
| 5 | Wing |
Acrylic or tempered glass is optional, shape, size, or color can be customized. |
Swing Barrier Gate Communication Protocol
The control board uses an RS232 serial communication port and adopts the Modbus communication protocol format. It can exchange data with the control board through serial communication, such as sending opening commands, reading the passage status, setting relevant parameter values, etc.
