| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST303 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Communication: | RS232 | Working Environment: | Indoor / Outdoor ( Shelter) |
| High Light: | 1100mm face recognition turnstiles,Streetcar station face recognition turnstiles,swing barrier gate SS304 |
||

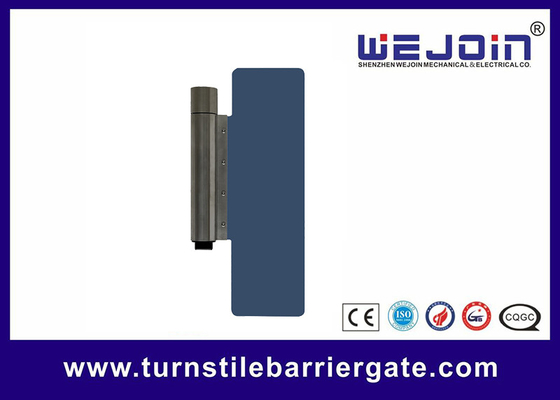

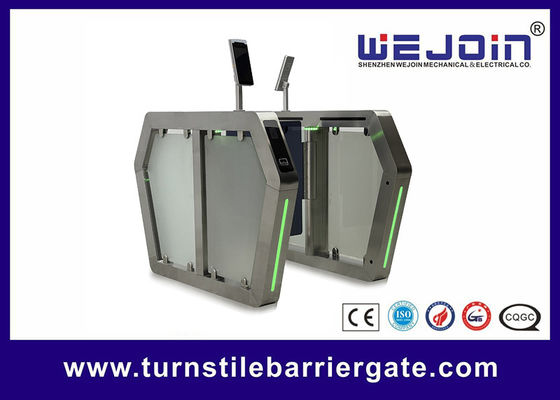

High speed anti-crush face recognition turnstiles swing barrier gate
Swing Barrier Quick Detail:
Name: Swing Barrier gate
Application: Streetcar station
Material: Stainless steel
Feature: Auto-reverse passing
Motor material: Steel and aluminum alloy
Certificate: CE,ISO
Motor type: DC24V
Relative hunmidity:≤90%,with no condensation
Speed Gate Technical Data
1.Housing material: stainless steel 304
2.Power supply/frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ
3.Drive motor: DC24V
4.Flow speed: 25~30person/minute
5. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
6.Opening and closing time: 0.2~1 seconds adjustable
7.Power on and reset time: 3s
8.Working environment:Inner and outer (with shelter)
9.Temperature: -20ºC~+70ººC
10. Relative humidity: ≤90%
Swing Barrier Gate Features and Functions
1) A compact electromechanical design with unique rotating plate technology and a reliable self-locking mechanism. The system is more stable and noiseless.
2). Adjustable access directions can be bi-directions or single-direction access.
3). Alarm (audible and visual) for the unauthorized access
4). Reliable safety precaution: the arm will drop when power is off; the arm will auto-running when power is on.
