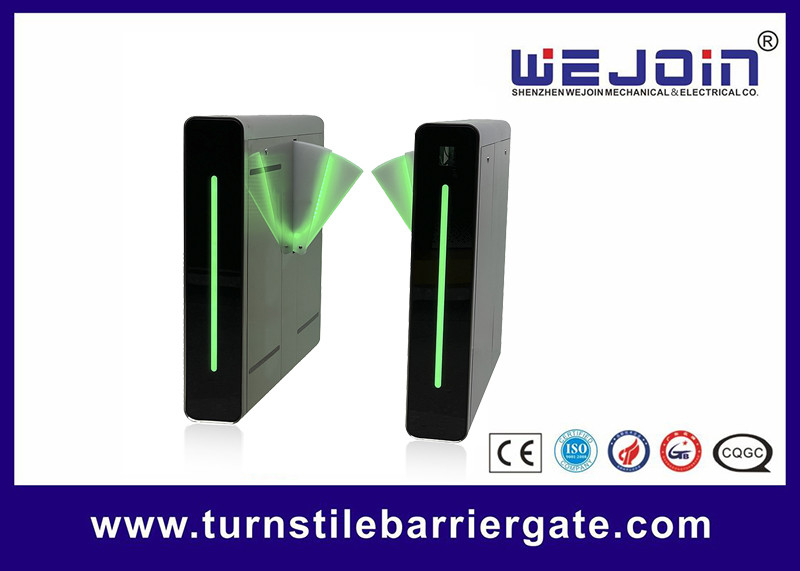

SUS304 stainless steel RFID flap barrier gate turnstile for security control
Speed Gate Technical Data:
|
1 |
Motor Power |
50W |
|
2 |
Material of Cabinet |
304 stainless steel |
|
3 |
Width of Passage |
600mm (a pair) |
|
4 |
Opening & Closing Speed |
0.2~1 seconds adjustable |
|
5 |
MTBF |
10,000,000 times |
Flap Barrier Gate Functions & Feature:
1) A compact electro-mechanical design with a unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-delay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access
Flap Barrier Troubleshooting and Solutions
A. Partial or whole system is no power when power-on
Check the plug and wire to make sure no connection problem. Check the fuse of the control board to make sure no damage.
B. No flap opens and no reaction after input of the open signal
Check the indicator of the control board and make sure it can receive the open signal. Make sure the open signal wire be connected and no damages to the fuse.
C. One flap can open but the other can’t.
Check the connection of the on-line wire, and make sure connected correctly. And make sure the control board of the non-functional one can receive the signal. If it can receive the signal, check the connection again.
