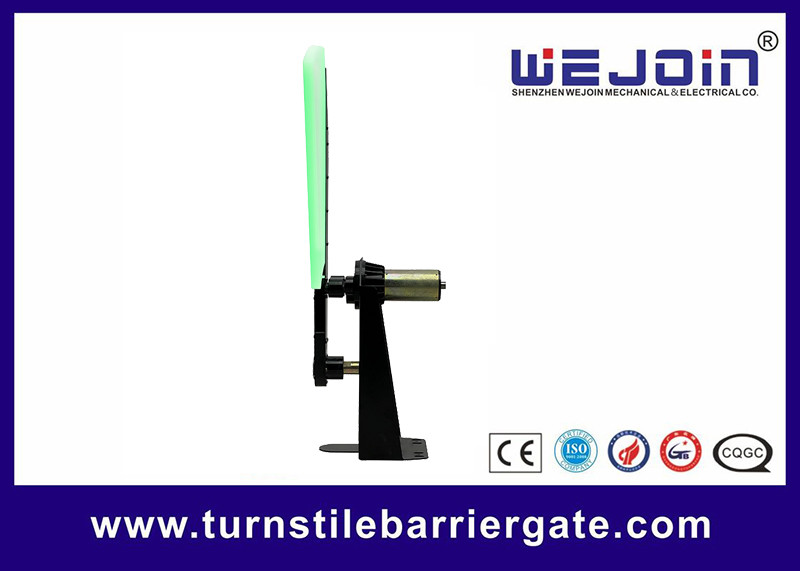

Automatic Flap Barrier Gate Turnstile Gate Barrier Pedestrian Fap Barrier
Flap Barrier Technical Data
1. Opening & closing speed is adjustable (0.2~1 seconds).
2. RS232 communication, support Modbus protocol.
3. Opening when power off, DC12V backup battery optional.
4. Support voice function, trumpet optional.
5. Working Temperature: -20℃ ~ +65℃
6. Input Voltage of Power Supply: AC100~240V
7. Input Voltage of Controller: DC24V
8. Motor Power: 50W
9. Relative Humidity: 90% (no condensation)
Speed Gate Product Condition (d-StU)
When power on, the digital tube will display "d-StU". When the menu is exited, it will display "d-StU" also if there is not any operation due to timeout.
For example, "A08" indicates that the master is closed in place; "S08" indicates that the slave is closed in place.
| Condition Code | Condition Information | Condition Code | Condition Information |
| 00 | Motor failure | 10 | Shutdown push |
| 01 | Homing | 12 | Emergency stop |
| 02 | Opening forward | 13 | Timeout waiting of the master/slave |
| 03 | Opening reversely | 14 | Counter-shaft running blocked |
| 04 | Closing forward | 15 | Counter-shaft stopping blocked |
| 05 | Closing reversely | 17 | Zero point identification |
| 06 | Opening forward in place | 18 | Drive alarm |
| 07 | Opening reversely in place | 21 | Opening when power off |
| 08 | Closing in place | 22 | Opening completely when power off |
| 09 | Running blocked | 23 | Reset |
Flap Barrier Gate Standard Functions Explanation
Swiping card access control system
There are three modes to control the passenger to enter and exit
1 One is the online mode, it is the computer to monitor the flap to be open and close; only the register can do that.
2 The other one is the off line mode, the card number is stored in the member chip by computer, after the card is read, the number will be checked by the MCU and make the correspondent action.
