Vehicle Access Control Non-Spring Barrier Gate with 4.5m Boom Length Aluminum Alloy Arm and Maintenance-free Design

1 unit
MOQ
negotiation
Price

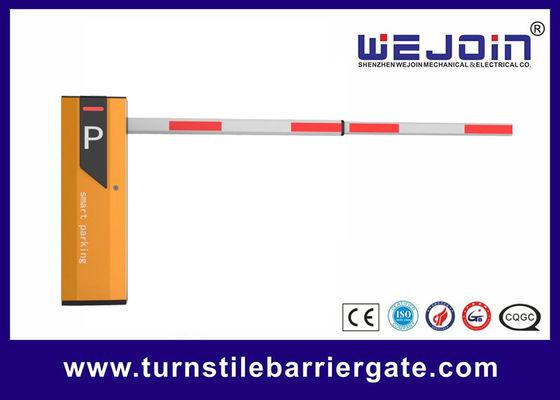

Vehicle Access Control Non-Spring Barrier Gate with 4.5m Boom Length Aluminum Alloy Arm and Maintenance-free Design
Features Gallery Product Description Request A Quote
Features
Specifications
Max Boom Length: 4.5 Metes
Size: 1200*300*980mm
Relative Humidity: 30%~80%, No Condensation
Opeating Time: 2-4s
Input Interface: Dry Contact
Operating Humidity: ≤90%
Arm Material: Aluminum Alloy
Cabinet: Customized
Remote Control Distance: ≤30 Meters
Motor Voltage: DC24V
Color: Gold
Mtbf: 5,000,000 Times
Highlight:

automatic car park barriers

,

automatic parking barrier
Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZE7A
Payment & Shipping Terms
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,Western Union
Supply Ability: 5000 units/week
Trade Terms: EXW, FOB, CIF
Product Description
Vehicle Access Control Non-Spring Barrier Gate 180-265VAC Maintenance-free
Professional Electronic Barrier Gates for Vehicle Access Control
This advanced barrier gate system consists of five key components: cabinet cap, cabinet body, transmission mechanism, control unit, and boom. Designed with left and right machine differentiation for comprehensive parking lot entrance and exit control systems.
Quick Specifications
  • Product Type: Bi-directional Barrier Gate
  • Application: Parking System Control
  • Operation Speed: 3/6 seconds
  • Safety Feature: Manual release capability
  • Rated Power: 180W
  • Certifications: CE, ISO
  • Net Weight: 60KG
  • Voltage: AC220V, AC110V
Model Selection Guide
Model Boom Shape Max Boom Length Speed
WJDZE7A Straight boom 4.5m 6 seconds
WJDZE7A Straight boom 4m 3 seconds
WJDZE7A 90 degree, Articulated boom 4m 6 seconds
WJDZE7A 90 degree, Articulated boom 3m 3 seconds
WJDZE7A 180 degree, Articulated boom 4m 6 seconds
WJDZE7A 180 degree, Articulated boom 3m 3 seconds
Advanced Features & Benefits
  • No spring design eliminates mechanical leveling requirements and ensures maintenance-free operation
  • Enhanced safety with boom that remains secure during power outages
  • Quick directional exchange capability within 30 seconds
  • Supports external radar, coil, and infrared anti-smashing functions with built-in DC 12V power output
  • Reliable worm gear and gear combination for durable performance
Technical Specifications
Parameter Specification
Model WJDZE7A
Working Temperature -40℃～+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated Power 180W
Relative Humidity ≤90%
Remote Control Distance ≥30m
Net Weight 35kgs
Speed 3S, 6S
Max Boom Length 4.5 meters
Frequently Asked Questions
What is WEJOIN's monthly production capacity for barrier gates?
Production capacity: 10,000 units per month.
How does WEJOIN address overheating problems in barrier gates?
Our barrier gates feature motor cooling fans for effective overheating protection. While WJDZ601 and WJDZ701 models don't include cooling fans, their aluminum alloy housing facilitates rapid heat radiation, and integrated shutters allow proper ventilation.
Why might the barrier boom open automatically?
Check the limit switch position and adjust if necessary. Refer to the Barrier Gate Manual for detailed instructions. Alternatively, adjust the adjusting screw and verify spring intensity for optimal performance.
What is the effective remote control distance?
While most WEJOIN 418 remote controls can reach up to 100 meters, we recommend operating within 30-50 meters for optimal safety and stability.
