| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO, |
| Model Number: | WJDZ101 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Color: | Orange | Material: | Cold-rolled Steel Plate |
|---|---|---|---|
| Speed: | 3s,6s | Boom Length: | Max.8M |
| Application: | Plaza,playground | Feature: | Durable,Easily Assembled |
| High Light: | Stainless Steel Car Park barrier,Intelligent barrier With RS485 Interface,Car Park Intelligent barrier |
||

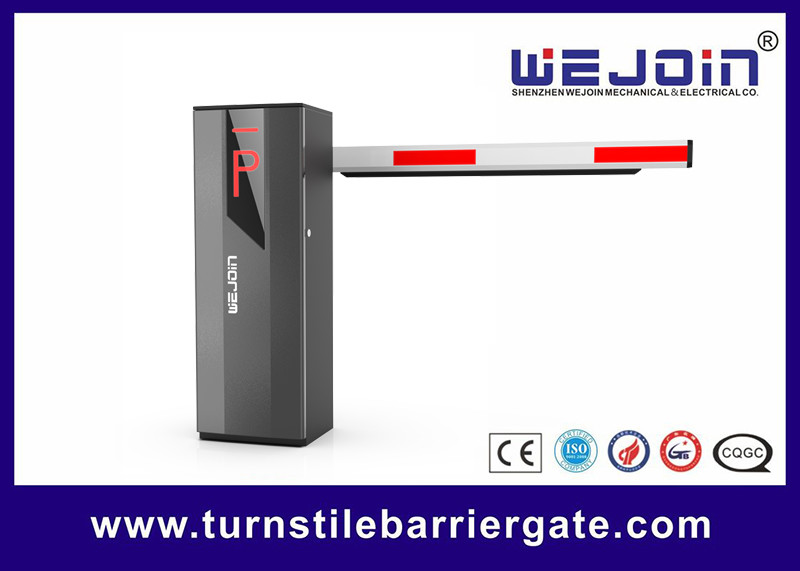

Stainless Steel Car Park Intelligent barrier With RS485 Interface
Quick Detail:
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:3/6 second
Feature: Manual release
Rated Power:300W
Certificate:CE, ISO,
Net Weight:45KG
Voltage:AC220V, AC110V
Description:
Model Selection and Differences
|
Model Item |
WJDZ10113 | WJDZ101116 |
| Opening Time | 3S | 6S |
| Boom Type | Straight, square-shaped | |
| Boom Length | 3M | 4M |
| Voltage | 110V/220V | |
| Motor/Power | AC/300W | |
| Working Temperature | -35℃ - 75℃ | |
| Protection Grade | IP55 | |
| Remote Control Distance | 30M~100M | |
Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
