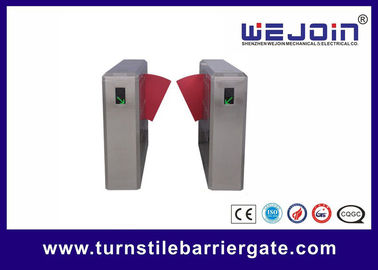

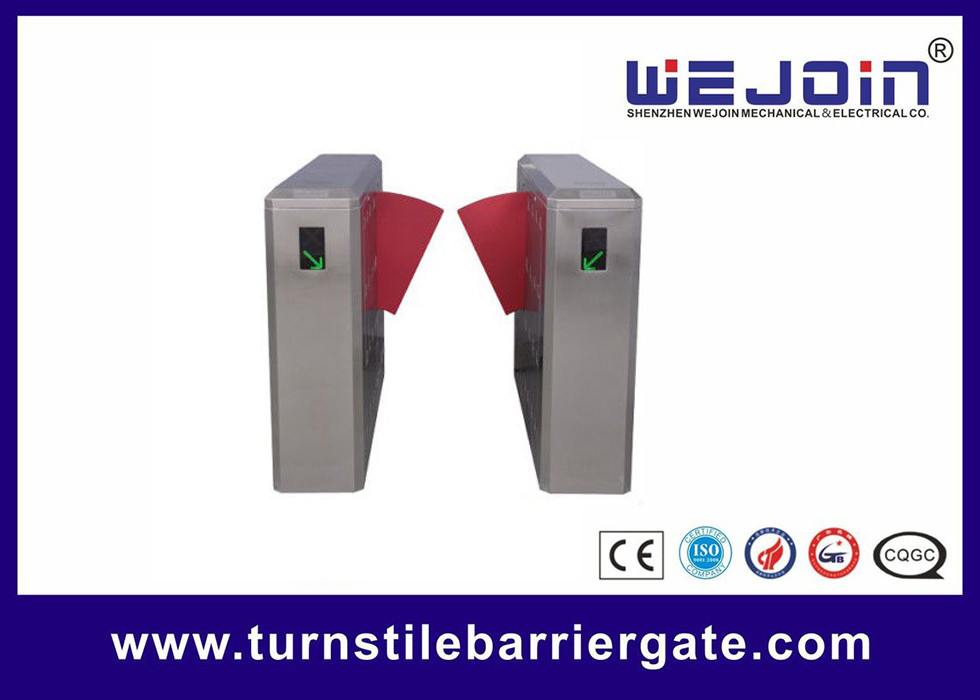

Pedestrian Speed Gate Systems Intelligent Flap Barrier Gate for High class communities
1. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.
2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
4. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.
High class communities, intelligent buildings, hotels, subway stations and other high level venues.
Functions and Features
1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).
2. Automatic detection for malfunctions.
3. Input interface available for dry contact and switch signal connection.
4. Adjustable auto-delay closing
5. Infrared photocells for safety access
6. Alarm for unauthorized access and no access against passenger flow
7. Anti-reverse passing
8. Auto-closing when power on
9. Auto-open and free access when power off
10. Adjustable access directions.
11. No battery is needed.
12. Emergency interface available.
13. Traffic light indicating passenger access.
|Stretching-out flap length||440mm|
|The max lane width||900mm|
|Cabinet material||304 stainless steel & aluminum alloy|
|Power supply||AC220V±15%, AC110V±15% 50/60Hz|
|Motor voltage||DC24V (brush motor)|
|Access device input voltage||dry contact|
|Max flow rate||30~40 people per minute|
|Flap opening/closing time||0.5s ~ 1s|
|reset time when power on||2s|
|working environment||outdoors (with shelter) and indoors.|
|working temperature||-25°C ~ +50°C|
