DC 24V Metro Flap Barrier Gate Controlled Access Control Turnstile Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY202
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Detail Information
Opening/closing Time: 0.5s Housing Material: 304 Stainless Steel
Wing Type: Transparent Direction: Double
Safety Access: Yes Package: Wooden
High Light:

turnstile security systems

,

speed gate systems


Product Description

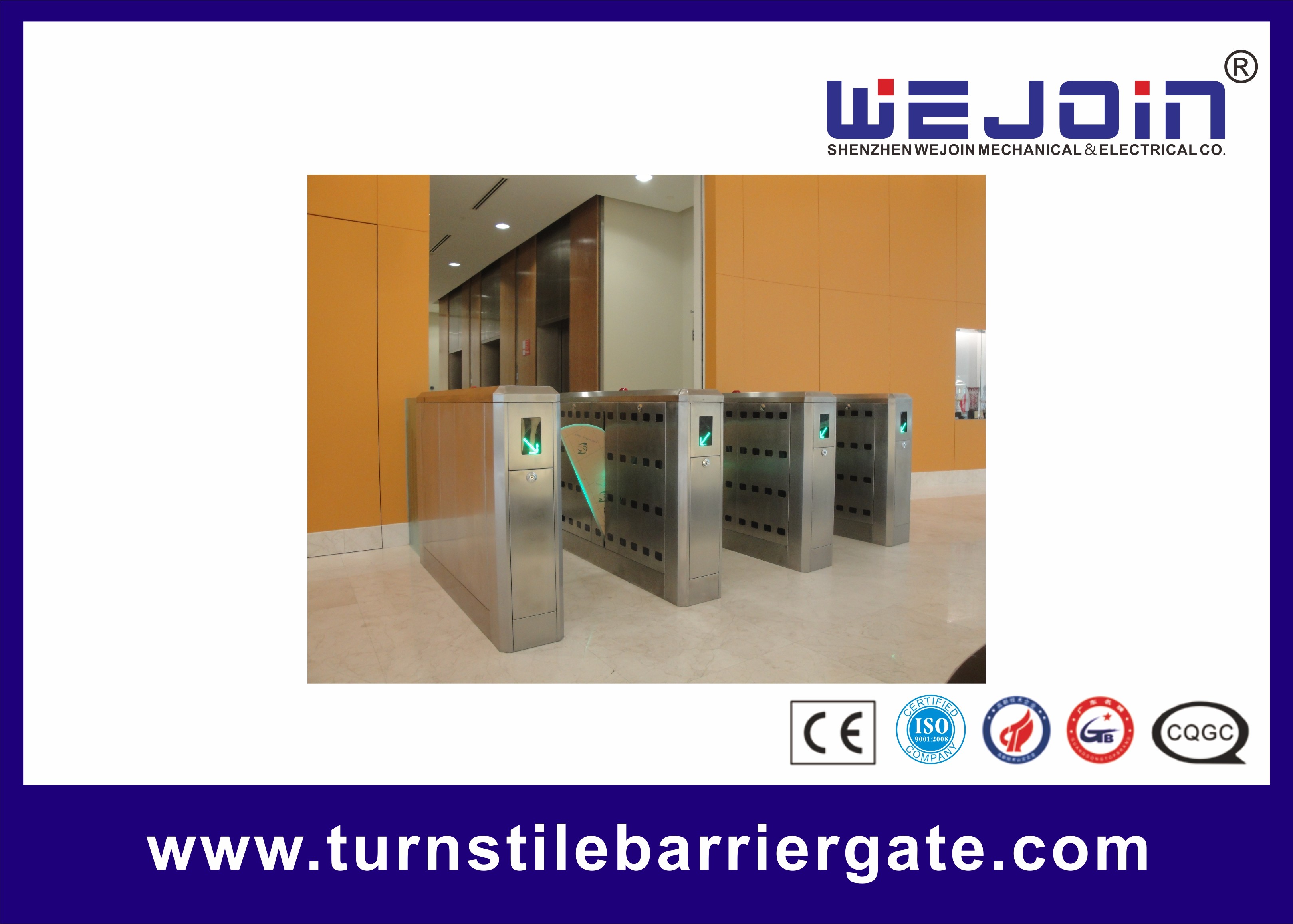

DC 24V Metro Flap Barrier Gate Controlled Access Control  Turnstile Gate



Applications:



High class communities, intelligent buildings, hotels, subway stations and other high level venues.



Functions and Features:

  • The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
  •  Malfunction self-detection. Which is easy for operation and maintenance.
  •  Flap work synchronously.
  •  Flap auto reversing when meeting exterior force.
  •  Audible and visual alarm in case of unauthorized access.
  •  Auti-reverse passing
  •  Operational mode can be set up through the built-in menu on the control board.
  •  Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
  • Flaps open when power off, and auto-close when power on.
  •  Compatible with diverse access control devices.
  •  Pedestrian flow directions can be single or double directions.
  •  Available for two-way traffic lights, which can prompt the state---pass or no-entry.
  • RS232 and LAN sockets are available to connect the computer.

Specifications:



Model WJTY202
Cabinet dimension 1200mm(L)×270mm(W)×1000mm(H)
Stretching-out flap length 275mm
The max lane width 600mm
Cabinet material 304 stainless steel
Power supply AC220V±15%, AC110V±15%
Motor voltage DC24V (brush motor)
Access device input voltage dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA
Max flow rate 30~40 people per minute
Flap opening/closing time 1 sec
reset time when power on 3 sec
protection grade IP32
working environment outdoors (with shelter) and indoors.
working temperature

-10°C~50°C



Dimension:



DC 24V  Metro Flap Barrier Gate Controlled Access Control Turnstile Gate 0
