304 Stainless Steel Access Control Turnstile Flap Barrier Entry systems

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY311
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 50PCS/week
Detail Information
Card Reader: Available Wing Color: Red
OPeration Time: 1s Warranty: 1year
Alarm: Available Wooden Package: Yes
High Light:

turnstile security systems


speed gate systems

Product Description

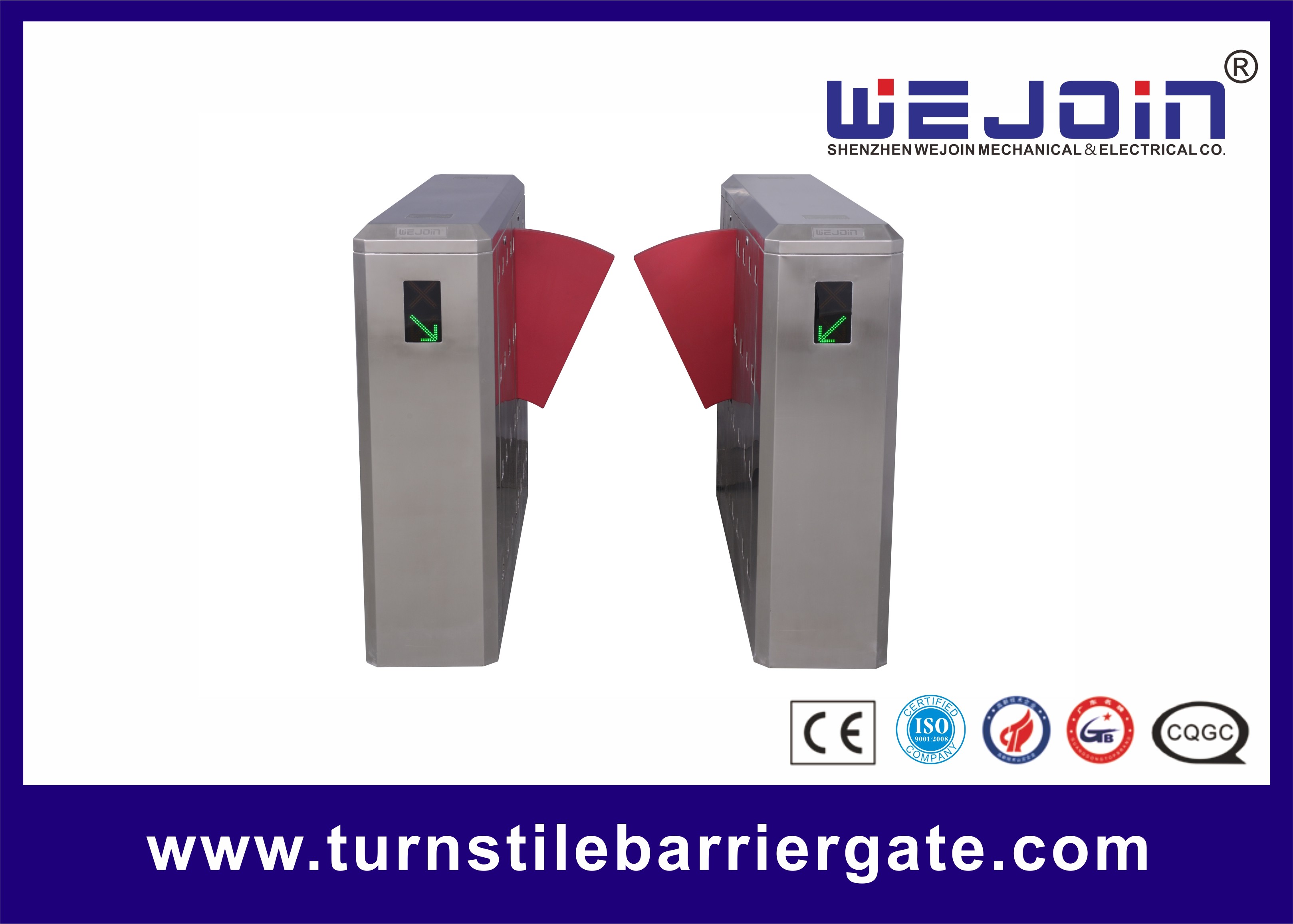

304 Stainless Steel Access Control Turnstile Gate Flap Barrier Entry systems




Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.


Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.


Functions and Features:


1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

2.Input interface available for dry contact and switch signal connection.

3.Automatic detection for malfunctions.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. Alarm for unauthorized access and no access against passenger flow

7. Adjustable access directions.

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Anti-reverse passing

11. No battery is needed.

12. Emergency interface available.

13. Traffic light indicating passenger access.




Model WJTY311
Cabinet dimension 1400mm(L)×305mm(W)×1020mm(H)
Stretching-out flap length 440mm
The max lane width 900mm
Cabinet material 304 stainless steel & aluminum alloy
Power supply AC220V±15%, AC110V±15% 50/60Hz
Motor voltage DC24V (brush motor)
Protect grade IP32
Max flow rate 30~40 people per minute
Flap opening/closing time 0.5s ~ 1s
reset time when power on 2s
Access device input voltage dry contact
working environment outdoors (with shelter) and indoors.
working temperature -25°C ~ +50°C


Wing Size:

304 Stainless Steel Access Control Turnstile Flap Barrier Entry systems 0
