Access Control Flap Barrier Gate Anti Reversing Turnstile Gate Entry Systems

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY202
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 50PCS/week
Detail Information
OEM Prodcut: Yes Metro Application: Yes
Product Material: 304 Stainless Steel Spare Parts Changement: Yes
Warranty: 1 Year Package: Wooden
High Light:

pedestrian gate access control


turnstile security systems

Product Description

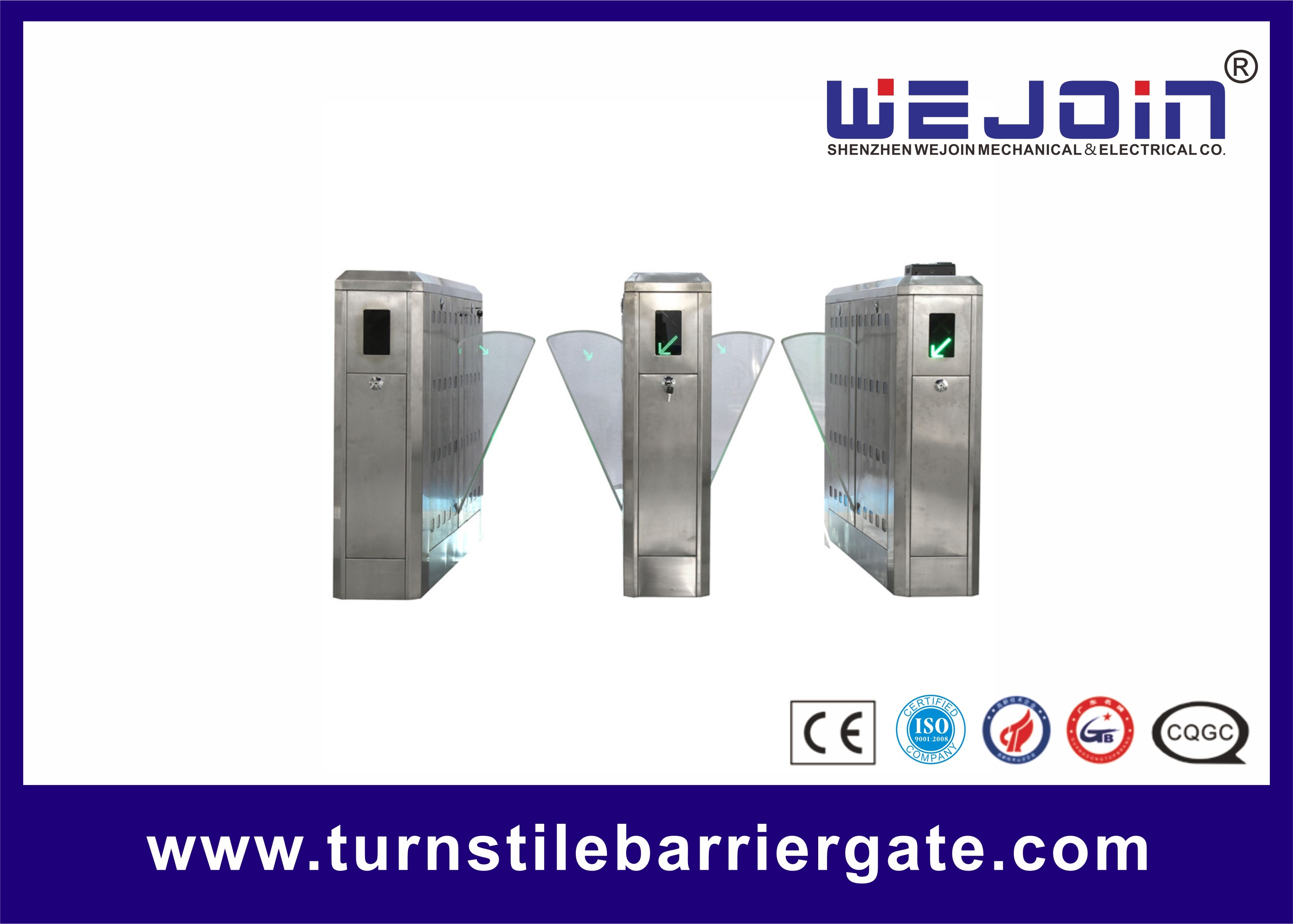

Access Control Flap Barrier Gate Anti Reversing Turnstile Gate Entry Systems






High class communities, intelligent buildings, hotels, subway stations and other high level venues.



Feature and Function:


1. A compact electric and mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.


2.WEJOIN flap barrier barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.


3.WEJOIN flap barrier barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the flap barrier with different system, like card reader, ticket system, token system etc.


4.WEJOIN flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable. The press button 1 and button 2 can adjust the delay closing time.


5.WEJOIN flap barrier barriers can be integrated with fire control device, which allow the release on emergency for security consideration.


6.WEJOIN flap barrier barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.


7. Infrared photocells for safety access

Access Control Flap Barrier Gate Anti Reversing Turnstile Gate Entry Systems 0

8. Anti-reversing passing


9. Auto closing when power on


10. Auto open and free access when power off


11. Adjustable access directions


13. Traffic light indicating passenger access


14. Battery is needed.




Model WJTY201
Stretching-out flap length 275mm
The max lane width 600mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Organic glass
Housing of thickness 1.5mm
Normal Life Span 3 millions times
Communication Interface Standard RS485(distance less than 1200 meters)
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation
