Half Height Safety Access Control Turnstile Gate Flap Barrier Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY311
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50PCS/week
Detail Information
Gate Material: PVC Housing Material: Stainless Steel
Operation Speed: Adjustable Fast Speed: 1s
Outdoor With Shelter: Yer Package: Wooden
High Light:

pedestrian gate access control


turnstile security systems

Product Description

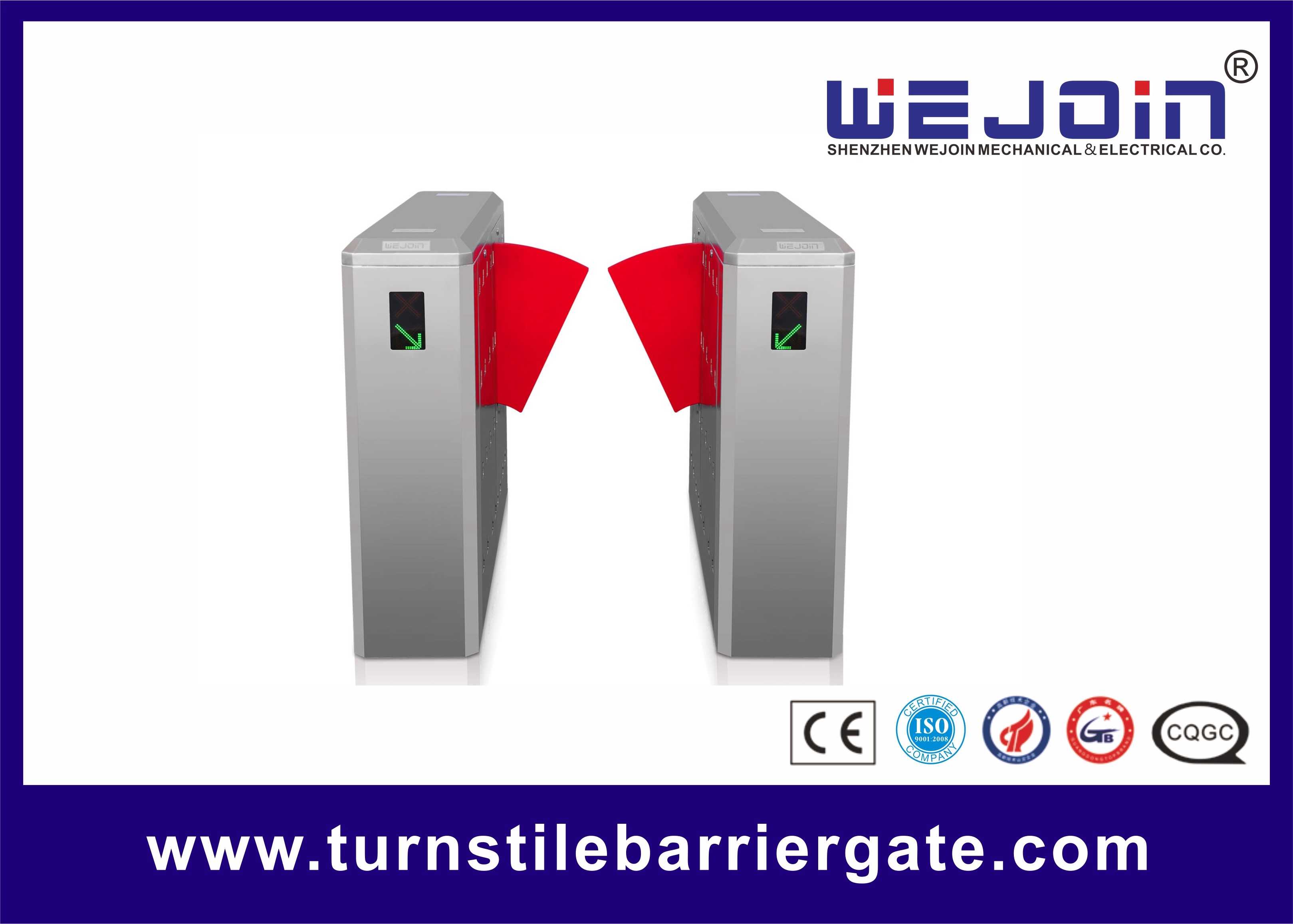

Half Height Safety Access Control Turnstile Gate Flap Barrier Gate


Functions and Features:


1. Flap work synchronously.

2. Malfunction self-detection. Which is easy for operation and maintenance.

3. Operational mode can be set up through the built-in menu on the control board.

4. Flap auto reversing when meeting exterior force.

5. Audible and visual alarm in case of unauthorized access.

6. Auti-collision function, the flap will stay close if not receiving the open signal.

7. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure

8. Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

9. Flaps open when power off, and auto-close when power on.

10. Compatible with diverse access control devices.

11. Pedestrian flow directions can be single or double directions.

12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.

13. RS232 and LAN sockets are available to connect the computer.




Model WJTY311
Cabinet dimension 1400mm(L)×270mm(W)×1000mm(H)
Stretching-out flap length 275mm
The max lane width 900mm
Cabinet material 304 stainless steel
Power supply AC220V±15%, AC110V±15%
Motor voltage DC12V (brush motor)
Access device input voltage dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA
Max flow rate 30~40 people per minute
Flap opening/closing time 1 sec
reset time when power on 3 sec
protection grade IP32
working environment outdoors (with shelter) and indoors.
working temperature -10°C~50°C




High class communities, intelligent buildings, hotels, subway stations and other high level.
