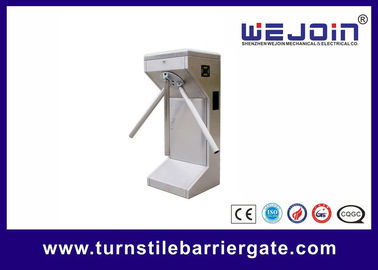

Automatic Tripod Turnstile Barrier Gate Stainless Steel DC Motor For Bus Station

1 set
MOQ
negotiation
Price
Automatic Tripod Turnstile Barrier Gate Stainless Steel DC Motor For Bus Station
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304 Stainless Steel
Warranty: 1 Year
Power Supply: AC220V
Communication: RS485
Color: Silver
Type: Fully Automatic Turnstile Gate
Highlight:

Bus Station Turnstile Barrier Gate

,

DC Motor Turnstile Barrier Gate

,

AC220V Automatic Tripod Turnstile

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: ISO 9001:2008, CE, SGS
Model Number: WJTS112
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Product Description

Automatic Tripod Turnstile Barrier Gate Stainless Steel DC Motor For Bus Station



Description

Name: Automatic Tripod turnstile

Arm length:490mm

Driving Motor:DC Motor

Power Supply:220V/ 110V±10%

Transit speed:30~40 person/min

Housing material:Stainless Steel 304/ Iron with Powder

Rotating Direction:Double Direction

Frequency:50/60HZ



Functions and Features:

1. Stainless Steel

2. Bi-direction pass

3. Arms auto drop when power off

4. Arms auto rise up when power on and auto stop on obstacle

5. Traffic light indicator

6. Wingen 26/Dry contact, is compatible with smart card for access control

7. Photoelectric inspection

8. If the passenger dose not pass in valid time, the passage will be locked up, And the valid time can be set up by operator

9. Passenger counters (optional)



Parameter

Model

WJTS112

Manual, Semi or Full-auto

Full-auto

Material of Housing

304 Stainless Steel

Dimension of Housing

1235*280*1000

Max Load-bearing of Pole

80kg

Driving Force of Pole

3kg

Rotating Direction

Double Direction

Power Supply

220v±10%,110±10%

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

50w

Driving Motor

DC Motor

Transit Speed

30~40 person/min

Working Temperature

 -25°C~55°C

Working Environment

Indoor/outdoor(Shelter)

Relative Humidity

≤95%













































Applications
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

After-sale Service
1 year warranty
Lifetime Service with charge accordingly
