Access Control Flap Barrier Half Height Turnstile Stainless Steel For School

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY201
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30 days
Payment Terms: Western Union, T/T
Supply Ability: 50PCS/week
Detail Information
Gate Length: 275mm Maximum Lane: 600mm
Flap Material: Oganic Glass Flow Speed: 30~40/min
Back-up Battery: Yes Bidirection: Yes
High Light:

security turnstiles

,

half height turnstile


Product Description

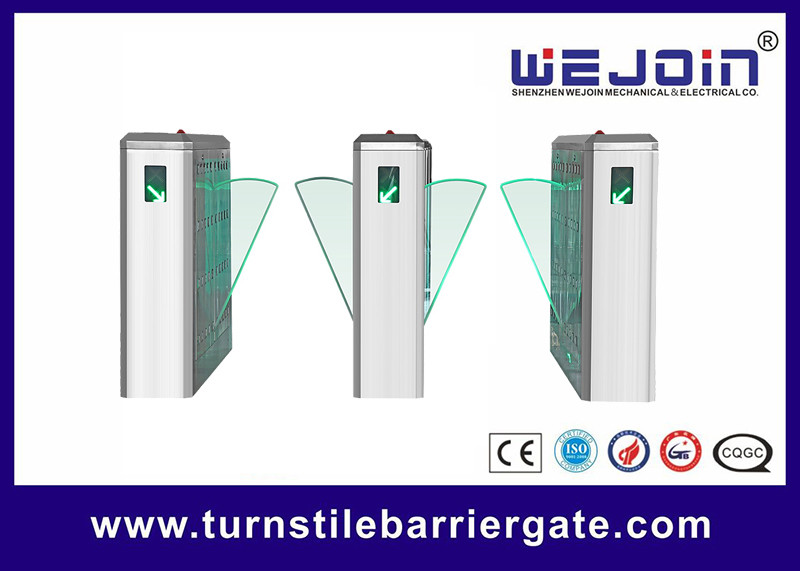

Access Control Flap Barrier half height turnstile Stainless Steel for school



Functions and Features:
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 5-20s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Anti-rush function: If there is no open signal, arm will be holding tightly.
8. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially. Also it will alarm.
9. Flap barrier is with standard electrical interface for the integration of various readers and writers.
10. Flap barrier can count how many passenger has passed(Optional) and will show it in the LED display.
11. Direction display to guide passenger which direction is to go.



Products Series:

Model
Item

WJTY201

WJTY301

WJTY311

Material of Housing

304 Stainless Steel

Material of Flap Door

Organic Glass, Resin, or PVC

Dimension of housing

1200*270*1000

1450*315*1020

1400*305*1020

Thickness of housing

1.5mm

Max Width of Passage

600

900

900

Net weight

70kg

140 kg

85 kg

Normal Life Span

3 millions times

Communication Interface

Standard RS485(distance less than 1200 meters)

Transit speed

30-40 persons/min

Power supply

220V±10%, 110± 10%

Frequency

50/60HZ

Working voltage of motor

DC24V

Time for opening or closing

1s

Starting time after power on

3s

Input interface

Dry contact signal or +12Vor pulse signal with width more than
100ms DC12V

Transit speed

25~32 persons/min

Working temperature

-10°C~50°C

Working environment

Indoor / Outdoor (Shelter)

Relative humidity

≤95%, no condensation





Access Control Flap Barrier Half Height Turnstile Stainless Steel For School 0
