|Arm Length:||300mm||Lane Wideth:||600mm|
|Wing Material:||Resin,or PVC||Motor:||DC12V|
|Protaction Grade:||IP32||Battery Needed:||Yes|
|Material:||304 Stainless Steel|
half height turnstile

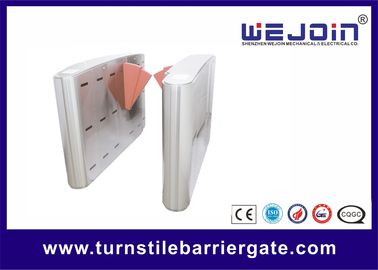

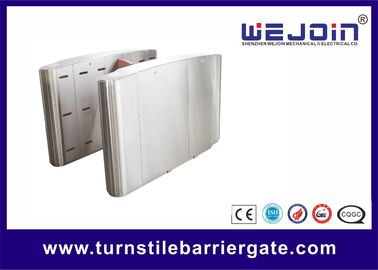

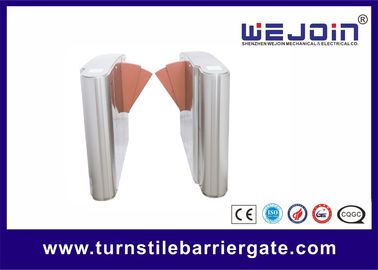

Access Control Flap Barrier Gate For Spare Club , bi-direction Gate
Functions and Features:
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 5-20s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Anti-rush function: If there is no open signal, arm will be holding tightly.
8. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially. Also it will alarm.
9. Flap barrier is with standard electrical interface for the integration of various readers and writers.
10. Flap barrier can count how many passenger has passed(Optional) and will show it in the LED display.
11. Direction display to guide passenger which direction is to go.
|The max lane width||600mm|
|Cabinet material||304 Stainless Steel|
|Power supply||AC220V±10%, AC110V±10% 50/60Hz|
|Motor voltage||24V (brush motor)|
|Access device input voltage||dry contact|
|Max flow rate||30~40 people per minute|
|Flap opening/closing time||1s|
|Reset time when power on||3s|
|Working environment||outdoors (with shelter) and indoors.|
|Working temperature||-10°C ~ +50°C|
