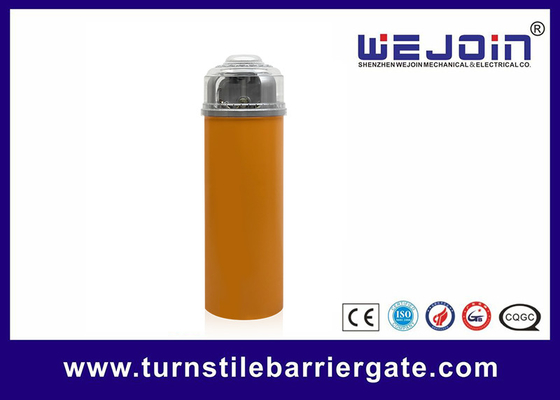

Round hollow-out design DC Variable-Frequency 3D Barrier Gate
Boom Barrier Brief Introduction
1. Be able to stop at any position in three-dimensional space, no longer limited height problem.
2. Double protection, one drive failure will not affect the other drive, and the barrier gate can still operate in another space;
3. No spring design, no longer worry about configuring springs and springs broken.
4. Traffic lights on the top cover to better indicate the passage of vehicles.
5. The running direction can be easily changed in two steps.
6. The cabinet is round hollow-out design, with smooth lines and intuitive movement process.
3D Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC110±10%, AC220V±10%
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: up and down power 180W; horizontal power 60W
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
7. Running Speed: 0.3 seconds MAX
8. MTBF: 8,000,000 times
Parking Barrier Packing List
Name | Specification | Quantity | Unit | Application |
Screw, Nut, Plastic Cover | M8*10 | 1 | sets | Fixing the boom |
Expansion Screws | M16*150 | 4 | sets | Fixing the cabinet |
Support Post | 1 | pc | Optional | |
Radio Emitter | 1 | pcs | Optional | |
Keys | 2 | pcs | For cabinet door | |
Remote Controller | 2 | pcs | ||
Manual | 1 | pcs |
