| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | SCB02 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Round Boom | Housing Color: | Gold |
|---|---|---|---|
| Application: | Parking Lot | Speed: | 0.3 Seconds MAX |
| MTBF: | 8,000,000 Times | Arm Material: | Aluminum Alloy |
| High Light: | DC24V Variable Frequency Car Parking Gate,0.3s car park barrier swing gate,Aluminum alloy automated parking gate |
||

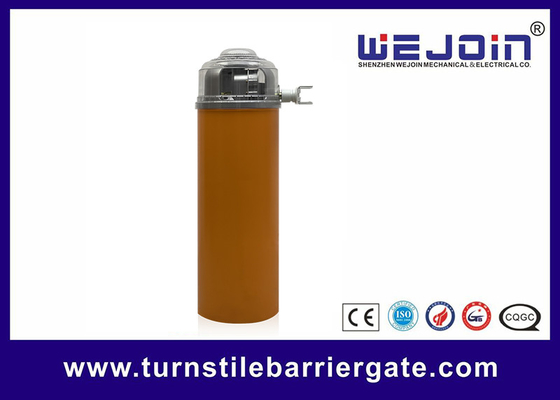

Running Speed 0.3 seconds MAX DC24V Variable-Frequency Barrier Gate
Parking Barrier Common Malfunctions and Solutions
| Malfunction Phenomenon | Possible Causes | Solution |
| The LED digital tube of the slave motor displays IdLE | The slave motor sensor plug is not plugged in or the wire is loose | Check the slave motor sensor plug |
| Slave motor sensor failure | Replace the slave motor | |
| LED Prompt: motor sensor is not detected | The main motor sensor plug is not plugged in or the wire is loose | Check the main motor senor plug, and plug well |
| Main motor sensor failure | Replace the main motor | |
| The control board is not powered on | The fuse is blown | Replace the fuse with the same specification |
| The power supply has no out put | Check the power supply or power circuit |
Barrier Gate Technical Data
1. Power supply input voltage: AC110±10%, AC220V±10%
2. Controller input voltage: DC24V±10%, 10A
3. Motor power: up and down power 180W; horizontal power 60W
4. Relative Humidity: 30%~80%, No condensation
5. Distance of remote control: L≥30M
6. Running Speed: 0.3 seconds MAX
7. MTBF: 8,000,000 times
Boom Barrier Brief Introduction
1. Breaking the normal operation mode of the barrier gate, the starting point adopts the same-direction driving operation mode with the vehicle passing, to realize the ultra-high-speed and ultra-intensive operation.
2. The boom will be reset after hit and removed, which effectively protects the boom and the mechanism, alarm against abnormal lifting boom.
3. Be able to stop at any position in three-dimensional space, no longer limited height problem.
4. Double protection, one drive failure will not affect the other drive, and the barrier gate can still operate in another space;
5. No spring design, no longer worry about configuring springs and springs broken.
6. Traffic lights on the top cover to better indicate the passage of vehicles.
7. The running direction can be easily changed in two steps.
