|Place of Origin:||CHINA|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 set|
|Delivery Time:||12 working days after payment received|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||10000 sets/month|
|Boom Type:||Straight Round Boom||Housing Color:||Orange|
|Application:||Parking Lot||Speed:||0.3 Seconds MAX|
|MTBF:||8,000,000 Times||Arm Material:||Aluminum Alloy|
Aluminum alloy automatic parking gate,
0.3 Seconds automatic parking gate barrier,
ISO Automatic Parking Gate Barrier

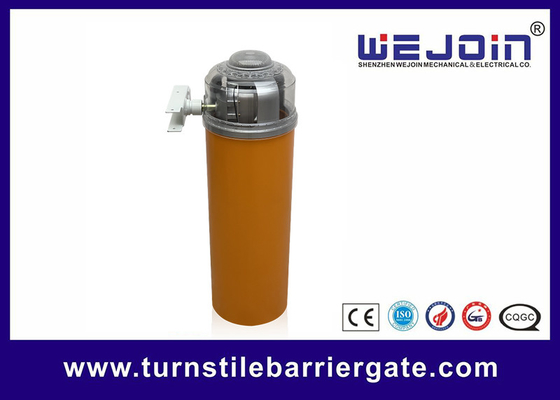

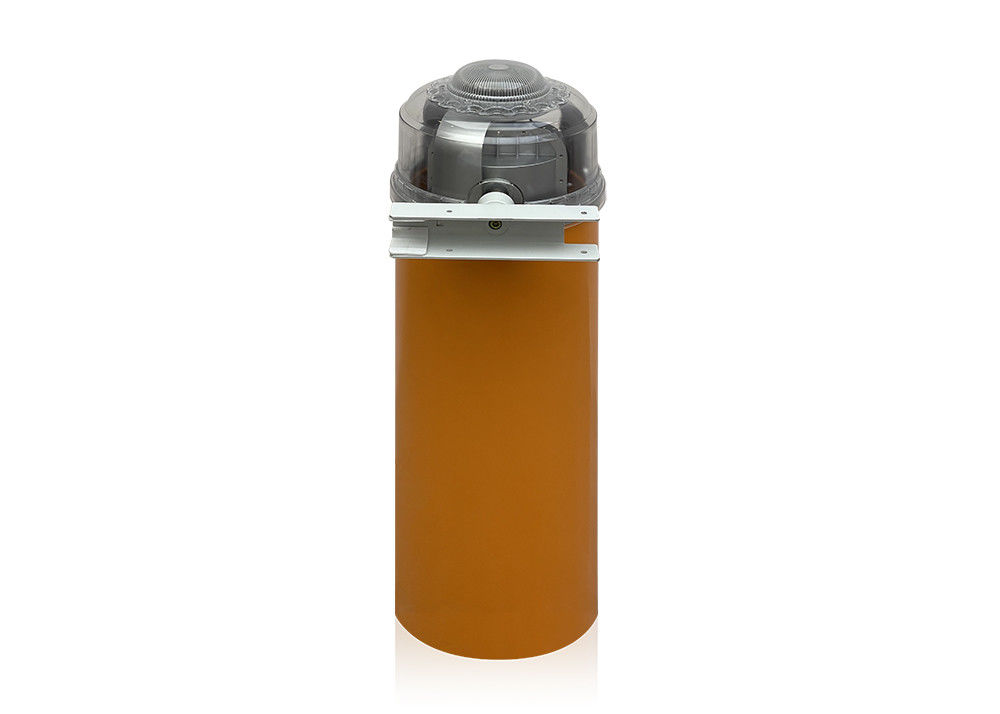

0.3 seconds Running Speed 8 Million Operating Times Automatic Parking Gate Barrier
Boom Barrier Brief Introduction
1. Adopt self-developed three-dimensional double-drive non-spring mechanism.
2. Double power motors, respectively, using a combination of two-stage planetary gear and two-stage gear drive, up and down and horizontal rotation, superimposed to form a three-dimensional curved running track.
3. Adopt DC permanent magnet synchronous motor, frequency control, effectively solve the problem of speed limit and life limit.
4. Break the normal operation mode of the barrier gate, the starting point adopts the same direction of travel operation mode with the vehicle passage, realizing the ultra-high speed and ultra-intensive operation.
5. standard equipped with obstruction rebound function, when the boom is obstructed in the process of falling will automatically rebound.
3D Barrier Gate Technical Data
|Working temperature (motor)||-35℃~ + 70℃|
|Power supply input voltage||AC110±10%, AC220V±10%|
|Controller input voltage||DC24V±10%, 10A|
|Motor power||up and down power 180W; horizontal power 60W|
|Relative Humidity||30%~80%, No condensation|
|Distance of remote control||L≥30M|
|Running Speed||0.3 seconds MAX|
Barrier Gate Safety Instructions
Operating Environment Requirements
Please transport, use and store the device within the allowable humidity and temperature range.
Please do not let any liquid flow into the device.
Please install the device in a well-ventilated place, and do not block the vents of the device.
Please do not press hard, vibrate violently, or soak the equipment.
Please use the factory packaging or materials of the same quality when shipping the equipment.
It is recommended to ground via the grounding hole on the device to improve its reliability.
