|Place of Origin:||CHINA|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 set|
|Delivery Time:||12 working days after payment received|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||10000 sets/month|
|Boom Type:||Straight Round Boom||Housing Color:||Orange|
|Application:||Parking Lot||Speed:||0.3 Seconds MAX|
|MTBF:||8,000,000 Times||Arm Material:||Aluminum Alloy|
Aluminum alloy parking barrier arm gate,
RS485 parking barrier arm gate,
DC12V parking lot arm gate

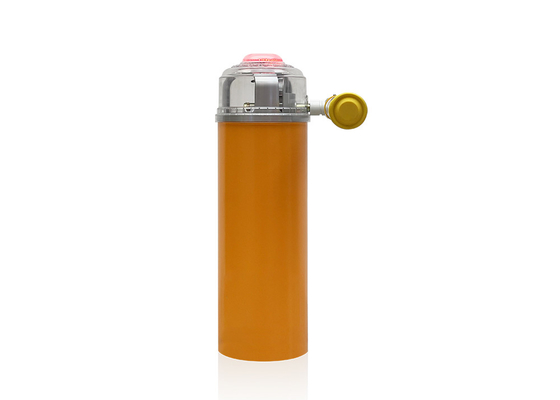

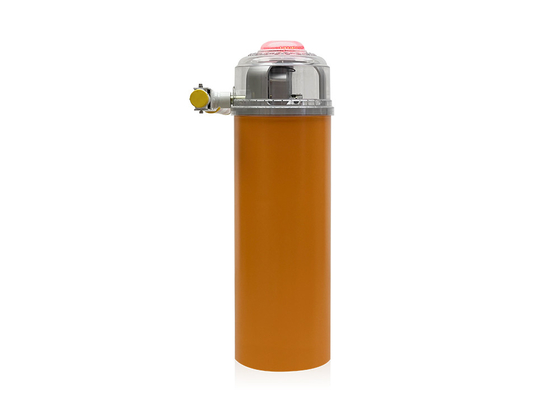

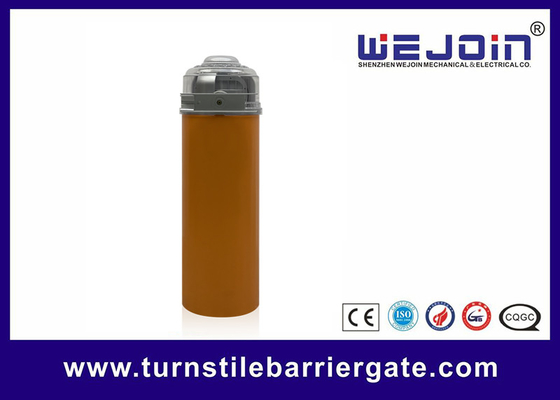

DC12V power supply RS485 communication 3D parking barrier arm gate
3D Barrier Gate Controller Interface Explanations
RS485 communication interface
It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
Limit Relay Output Interface
It is used for the system to checking the status of the barrier gate by the opening and closing times; users can also change to other output modes via option 4 of the advanced menu.
DC12V Power Output
Provide 1A current output, available for radar or small light strips.
Interface for R&G lights
Available to connect with R&G lights, to indicate the working status of the barrier gate.
Boom Barrier Brief Introduction
1. Adopt self-developed three-dimensional double-drive springless mechanism.
2. Double power motors, respectively, using a combination of two-stage planetary gear and two-stage gear drive, up and down and horizontal rotation, superimposed to form a three-dimensional arc running track.
3. Adopt DC permanent magnet synchronous motor, frequency control, effectively solve the problem of speed limit and life limit, etc.
4. Breakthrough the conventional operation mode of the barrier gate, the starting direction of the barrier gate boom runs in the same direction as the vehicle passage, realizing the ultra-high speed and ultra-intensive operation.
5. Standardly equipped with obstruction rebound function, when the boom meets obstruction in the process of falling will automatically rebound.
6. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC12V power supply is optional.
Barrier Gate Safety Instructions
1. Please transport, use and store the equipment within the allowed humidity and temperature range.
2. Do not allow any liquid to flow into the equipment.
3. Install the equipment in a well-ventilated area and do not block the ventilation openings of the equipment.
4. Do not press, shake or soak the equipment.
5. Please ship the equipment in the same packaging as it was shipped from the factory or a material of equivalent quality.
6. It is recommended that the grounding hole on the equipment be grounded to improve the reliability of the equipment.
