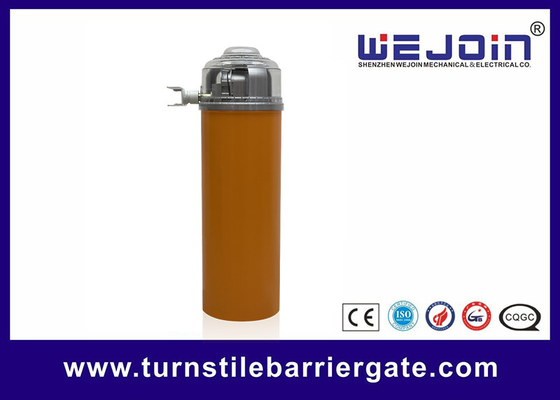

Round hollow-out cabinet and no spring design automatic parking gate barrier
Boom Barrier Functions and Features
1. Motor : Dual power motors, use two-stage planetary gear and two-stage gear drive combination respectively, rotate up and down and horizontally, and superimpose to form a three-dimensional surface running track.
2. Control System: DC variable-frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
3. Auto-reversing on Obstruction: Sensitive, responsive, safe and reliable.
4. Control Panel: Large LCD screen display, English visual menu, simple maintenance and easy operation.
5. Warranty Period: 2 years for motor and control board.
6. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC12V power supply is optional.
3D Barrier Gate Controller Interface Explanations
|
RS485 communication interface |
It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously. |
|
Limit Relay Output Interface |
It is used for the system to checking the status of the barrier gate by the opening and closing times; users can also change to other output modes via option 4 of the advanced menu. |
|
DC12V Power Output |
Provide 1A current output, available for radar or small light strips. |
|
Interface for R&G lights |
Available to connect with R&G lights, to indicate the working status of the barrier gate. |
Barrier Gate Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the easily worn-out parts every half year and renew them.
4. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weathers.
