manufacture of pedestrian access control , card reader , fingerprint, access control system, flap barrier

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJTY201
Minimum Order Quantity: 1 set
Packaging Details: wooden
Delivery Time: 2-5 working days
Payment Terms: T/T
Supply Ability: 1000 PCS/month
Detail Information
Housing Material: Stainless Steel Motor Material: Aluminum Alooy
Functuion: Automatic
High Light:

optical turnstile


half height turnstile

Product Description

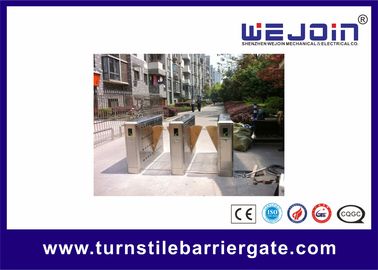

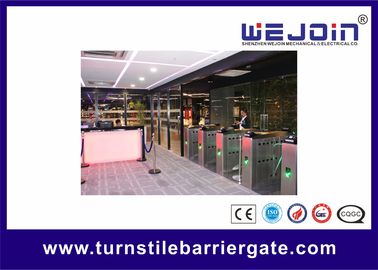

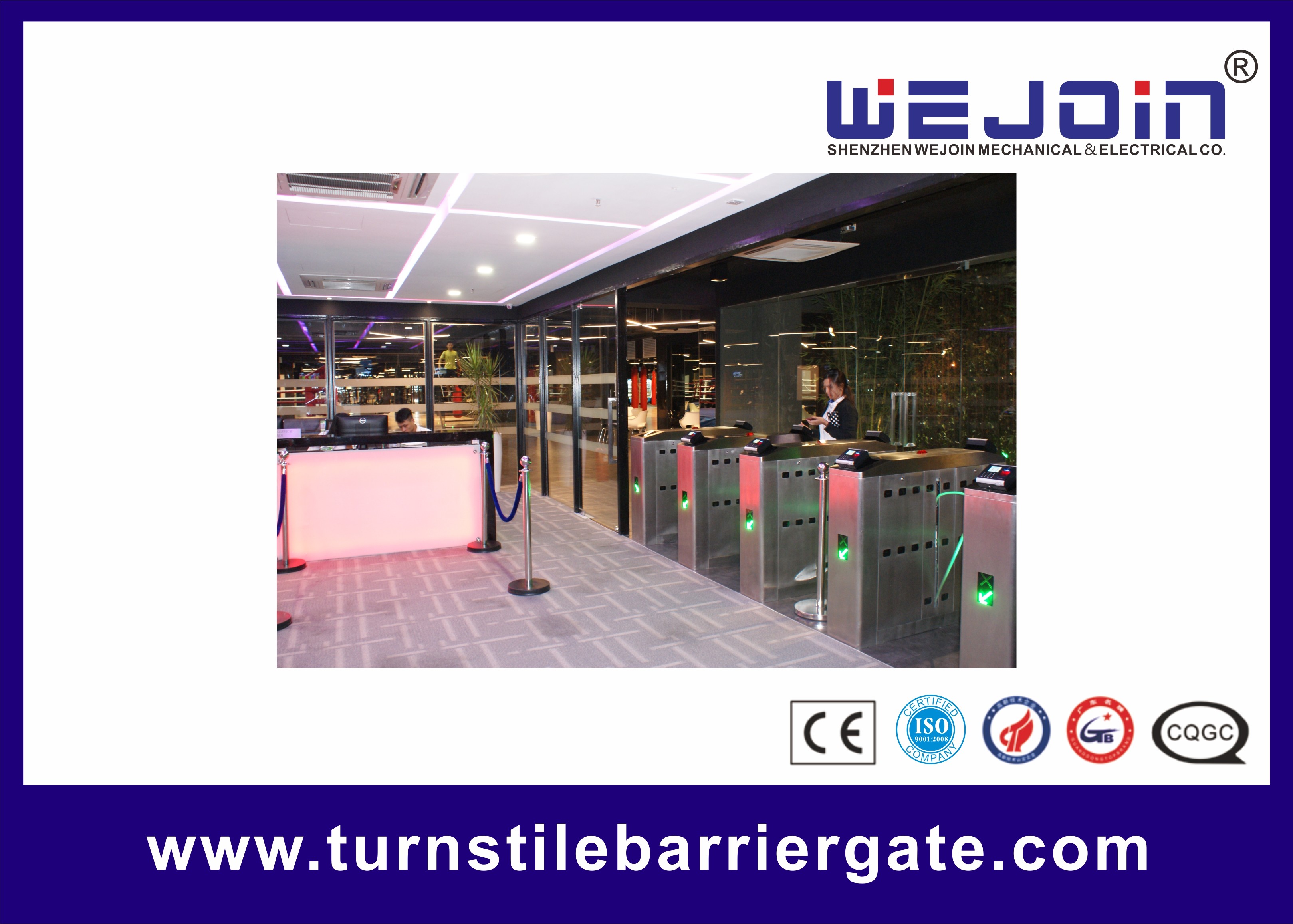

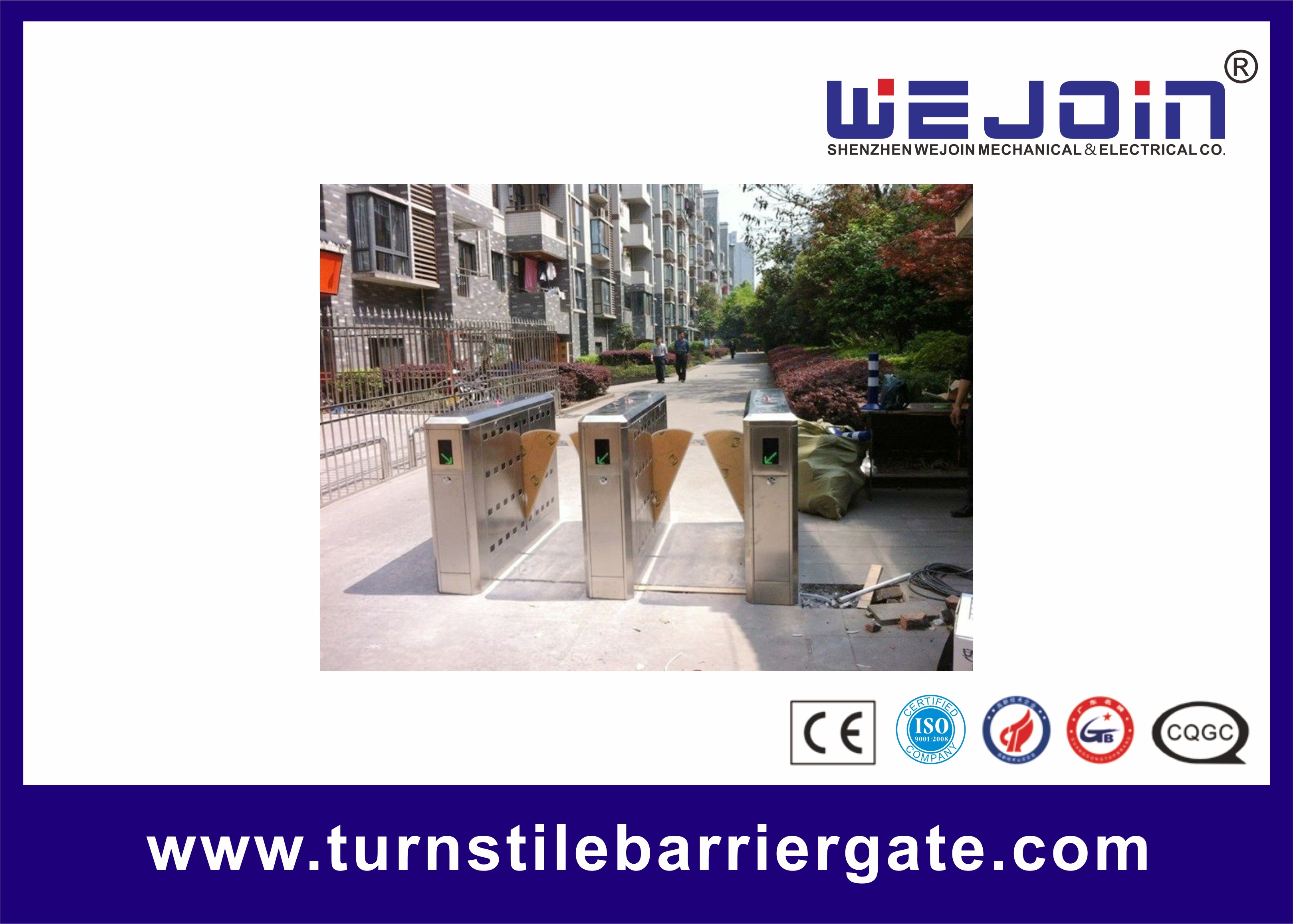

Flap barrier


Application: Our company is the professional manufacture of  barrier gates, flap barreir gates, swing barrier gates, turnstile gates, parking lock, electric motor, etc. Our products have CE, ISO Certification, and our products have won best feedback from home and abroad.   our products have widely used in many places, like the metro station, library, gate of other company to realize the intelligent management.


Functions and features

  • a compact electro-mechanical design with unique drive and a self-lock mechanism
  • automatic detection for malfunction
  • input interface for dry contact and switch signal connection
  • adjustable auto-delay closing
  • infrared photocells for safety access
  • alarm for unauthorized access and no access against passenger flow
  • anti-reversing passing
  • auto closing when power on
  • auto open and free access when power off
  • adjustable access directions
  • emergency interface available
  • traffic light indicating passenger access

Technical data

  • 1. Housing dimension: bridge type bevel angle 1400*270*1000mm
  • 2. Flap arm length: 275mm
  • 3. Max arm width: 900mm
  • 4. Housing material: stainless steel 304
  • 5. Power supply/frequency: AC220V±10%, 50HZ
  • AC110±10%, 60HZ
  • 6. Drive motor: 12V direct current brush motor
  • Flow speed: 25~30/minute
  • Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
  • Opening and closing time: 0.5 minute
  •  Power on and reset time: 3s
  •  IP protection degree: IP 32
  •  Working environment:
  • Inner and outer (with shelter)
  • Temperature: -25℃~+50º℃
  • Relative humidity: ≤90%
