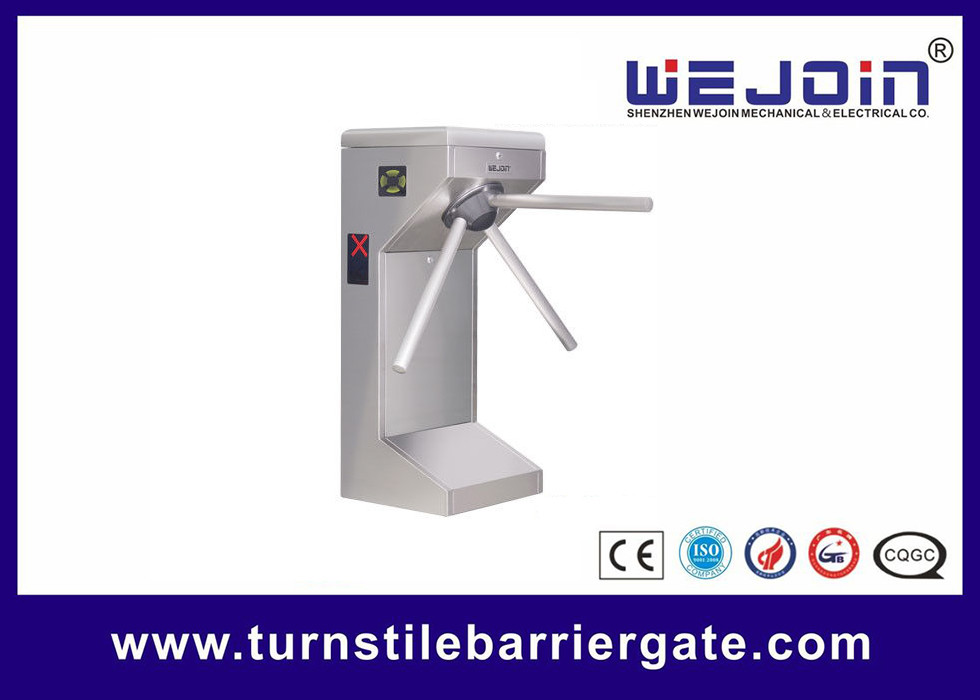

Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V

Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V

    • Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V
    • Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V
    • Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V
  • Full Automatic Counter Tripod Turnstile Gates , Pedestrian Security Gate DC 12V

    Product Details:

    Place of Origin: China
    Brand Name: WEJOIN
    Certification: CE ISO SGS
    Model Number: WJTS122

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: NEGOCIATE
    Packaging Details: wooden
    Delivery Time: 2-5 working days
    Payment Terms: T/T
    Supply Ability: 1000 PCS/month
    Contact Now
    Detailed Product Description
    Housing Material: Stainless Steel Motor Material: Aluminum Alooy
    Functuion: Full Automatic Voltage: DC12V



    Full automatic tripod turnstile

    • Stainless steel housing
    • Bi-direction passing, the arm can rotate from one direction or two directions(optional)
    • Adjustable working mode, can be two way passing or one way passing, and the other is prohibited
    • Arms auto drop when power off
    • Arms auto rise up when power on and auto drop on obstacle
    • Traffic light indicator
    • Wingen 26/Dry contact, is compatible with smart card for access control
    • Photoelectric inspection
    • If the passenger does not pass in valid time, the passage will lock up, and the valid time is adjustable
    • Passenger counter.





    Technology data

    • Power supply/frequency: AC220V±10%, 50HZ
    • AC110± 10%, 60HZ
    • Working voltage: DC12V
    • Rated power:50W
    • Working temperature: -25℃~+55℃
    • Relative humidity: ≤90%
    • Motor speed: 850 times/minute
    • Dimension: bridge: 1235*280*100 type: WJ-TS112
    • Vertical: 420*330*980 type: WJ-TS122
    • Length: 490mm
    • MAX boom endurable:  80kg
    • Boom working force:  4kg
    • Working environment: inner and outer
    • Flow speed: 25~30/minute
    • Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
    • EM signal interface, dry contact (COM NO)..
    •  Alarm input interface:DC12V





    Model

    Item

    WJTS122

    WJTS110

    WJTS112

    WJTS111

    WJTS122s

    WJTS110s

    WJTS112s

    WJTS111s

    Manual, semi

    or full automatic

    Full-automatic

    Semi-automatic

    Material of housing

    304 stainless steel

    Iron with powder

    304 stainless steel

    Iron with powder

    Dimension of housing

    420*380*1000

    1235*280*1000

    1235*280*1000

    420*380*1050

    480*330*980

    1200*280*980

    1200*280*980

    420*380*1050

    Thickness of housing

    1.5mm

    1.5mm

    Length of pole

    490mm

    490mm

    Net weight

    50kg

    70 kg

    70 kg

    45 kg

    40 kg

    70 kg

    70 kg

    35 kg

    Max load-bearing of pole

    80kg

    80kg

    Driving force of pole

    3kg

    3kg

    Rotating direction

    Double direction

    Double direction

    Power supply

    220V±10%, 110± 10%

    220V±10%, 110± 10%

    Frequency

    50/60HZ

    50/60HZ

    Working voltage of motor

    DC12V

    DC24V

    Rated power

    50W

    36W

    Driving motor

    Brush DC motor

    Brushless DC motor

    Input interface

    DC12V electrical level signal, more than 10ms,

     or DC12V impulse signal driveling current, more 10mA

    Dry contact with the pulse between 200ms~500ms

    Transit speed

    25~32 persons/min

    30~45 persons/min

    Working temperature

    -25°C~55°C

    -25°C~55°C

    Working environment

    Indoor / Outdoor (Shelter)

    Indoor / Outdoor (Shelter)

    Relative humidity

    ≤95%, no condensation

    ≤95%, no condensation
