safety product Speed Gate / Flap Turnstile Control Access Control System Flap Barrier, manufacture of China

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJTY312
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: wooden
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month
Detail Information
Housing Material: Stainless Steel Motor Material: Aluminum Alloy
Function: Fast Speed Security
High Light:

security turnstiles


optical turnstile

Product Description

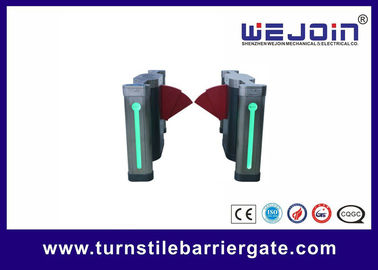

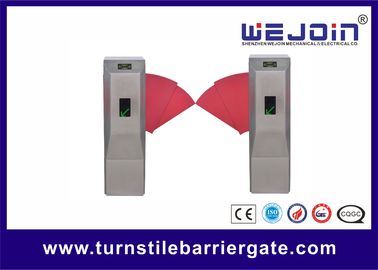

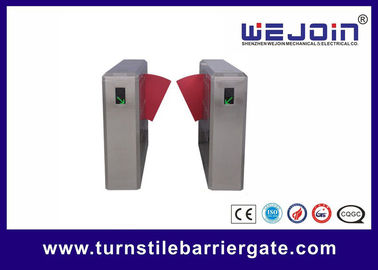

Flap barrier

Functions and features

  • a compact electro-mechanical design with unique drive and a self-lock mechanism
  • automatic detection for malfunction
  • input interface for dry contact and switch signal connection
  • adjustable auto-delay closing
  • infrared photocells for safety access
  • alarm for unauthorized access and no access against passenger flow
  • anti-reversing passing
  • auto closing when power on
  • auto open and free access when power off
  • adjustable access directions
  • emergency interface available
  • traffic light indicating passenger access

Technical data

  • 1. Housing dimension: bridge type bevel angle 1400*270*1000mm
  • 2. Flap arm length: 275mm
  • 3. Max arm width: 900mm
  • 4. Housing material: stainless steel 304
  • 5. Power supply/frequency: AC220V±10%, 50HZ
  • AC110±10%, 60HZ
  • 6. Drive motor: 12V direct current brush motor
  • Flow speed: 25~30/minute
  • Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
  • Opening and closing time: 0.5 minute
  •  Power on and reset time: 3s
  •  IP protection degree: IP 32
  •  Working environment:
  • Inner and outer (with shelter)
  • Temperature: -25℃~+50º℃
  • Relative humidity: ≤90%
