barrier gates , access control Flap Barrier , flap barrier with anti-reversing passing Flap Barrier

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJTY201
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: wooden
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs/month
Detail Information
Housing Material: Stainless Steel Motor Material: Aluminum Alloy
Function: Fast Speed Security Power Supply: AC220V/110V
Type: Single Core & Double Core Warranty: 12 Months
High Light:

security turnstiles


half height turnstile

Product Description

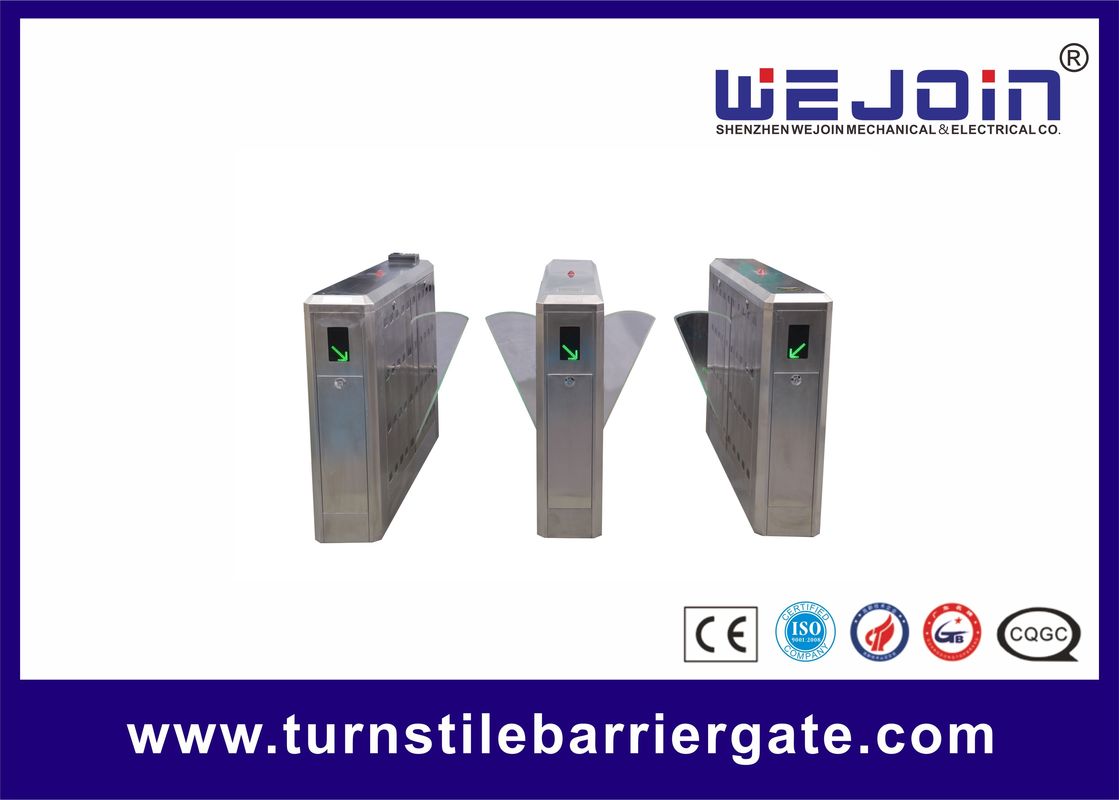

access control flap barrier with anti-reversing passing


Functions and features

  • a compact electro-mechanical design with unique drive and a self-lock mechanism

  • automatic detection for malfunction

  • input interface for dry contact and switch signal connection

  • adjustable auto-delay closing

  • infrared photocells for safety access

  • alarm for unauthorized access and no access against passenger flow

  • anti-reversing passing

  • auto closing when power on

  • auto open and free access when power off

  • adjustable access directions

  • emergency interface available

  • traffic light indicating passenger access


Technical data

  • Housing dimension: bridge type bevel angle 1400*270*1000mm

  • Flap arm length: 275mm

  • Max arm width: 900mm

  • Housing material: stainless steel 304

  • Power supply/frequency: AC220V±10%, 50HZ; AC110±10%, 60HZ

  • Drive motor: 12V direct current brush motor

  • Flow speed: 25~30/minute

  • Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).

  • Opening and closing time: 0.5 minute

  • Power on and reset time: 3s

  • IP protection degree: IP 32

  • Working environment: Inner and outer (with shelter)

  • Temperature: -25℃~+50º℃

  • Relative humidity: ≤90%
