RS485 Automatic Parking Gate Barrier Easier Operation No Spring Design

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E40
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 1.8~6s Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel Color: Gold
Application: Parking Lot Warranty: 1 Year
High Light:

RS485 automatic parking gate barrier

,

No Spring automatic parking gate barrier

,

6s automatic parking barrier system


Product Description

Easier operation no spring design automatic parking gate barrier



Model DZE4 Parameter Selection:

Type

Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with folding boom

L≤3M (1.5+1.5M), up speed 2S.

L≤4M (2+2M), up speed 4S.

L≤5M (2.5+2.5M), up speed 4S.



Boom Barrier Basic Features:

1. No spring design, eliminating the need for mechanical leveling, maintenance-free.

2. Auto-reversing on obstruction, Safer and more reliable.

3. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.

4. Support RS485 communication or RS485 offline connection.

5. DC24V power supply is optional.

6. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.8 seconds to 6 seconds.

7. The boom (within 4.5m) will not fall off when power off

8. Minimal operation, the direction can be exchanged in 30 seconds.

9. Bluetooth control, one-key remote service.



Common Malfunctions and Solutions

Malfunction Phenomenon: The controller resets when the barrier gate is running

A: Possible Causes: Short circuit inside the motor.

Solution: Measure the resistance of each two wires (white, yellow and red) of the motor phase line by a multimeter, to check if the resistance numbers are the same.

B: Possible Causes: Barrier gate controller failure.

Solution: Replace the controller.



Malfunction Phenomenon: Remote control distance is short

A: Possible Causes: The battery voltage of remote controller is too low

Solution: Replace the batteries.

B: Possible Causes: High-voltage wires or strong electromagnetic causing serious interference near the barrier gate

Solution: Replace the high-power remote controller.

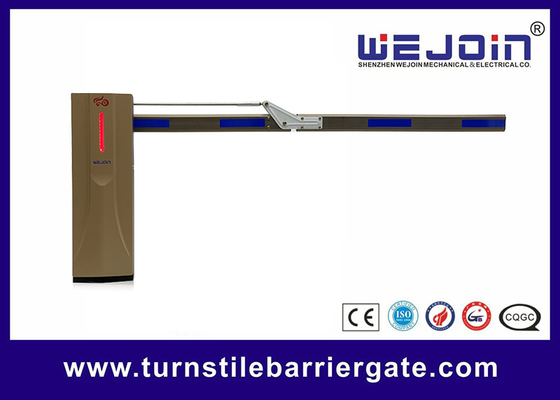

RS485 Automatic Parking Gate Barrier Easier Operation No Spring Design 0
