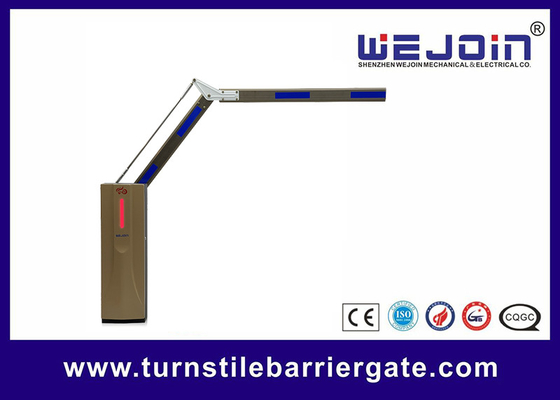

RS485 Communication Parking Barrier Gate DC24V No Spring Vehicle Boom Barrier

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E40
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 1.8~6s Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel Color: Gold
Application: Parking Lot Warranty: 1 Year
High Light:

RS485 Communication Parking Barrier Gate

,

Parking Barrier Gate DC24V

,

No Spring Vehicle Boom Barrier


Product Description

DC24V power supply RS485 communication no spring design barrier gate


Model DZE4 Parameter Selection:

Type

Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with folding boom

L≤3M (1.5+1.5M), up speed 2S.

L≤4M (2+2M), up speed 4S.

L≤5M (2.5+2.5M), up speed 4S.



Boom Barrier Basic Features:

1. Support RS485 communication or RS485 offline connection.

2. DC24V power supply is optional.

3. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.8 seconds to 6 seconds.

4. The boom (within 4.5m) will not fall off when power off

5. Minimal operation, the direction can be exchanged in 30 seconds.

6. Bluetooth control, one-key remote service.

7. No spring design, eliminating the need for mechanical leveling, maintenance-free.

8. Auto-reversing on obstruction, Safer and more reliable.

9. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.

10. The perfect combination of worm gear and gear is reliable.



Common Malfunctions and Solutions

Malfunction Phenomenon: The controller displays IDLE

A: Possible Causes: The motor sensor plug is not plugged in.

Solution: Insert the motor sensor plug well.

B: Possible Causes: Motor sensor failure.

Solution: Replace the motor.



Malfunction Phenomenon: Remote control distance is short

A: Possible Causes: The battery voltage of the remote controller is too low

Solution: Replace the batteries.

B: Possible Causes: High-voltage wires or strong electromagnetic causing serious interference near the barrier gate

Solution: Replace the high-power remote controller.



RS485 Communication Parking Barrier Gate DC24V No Spring Vehicle Boom Barrier 0
