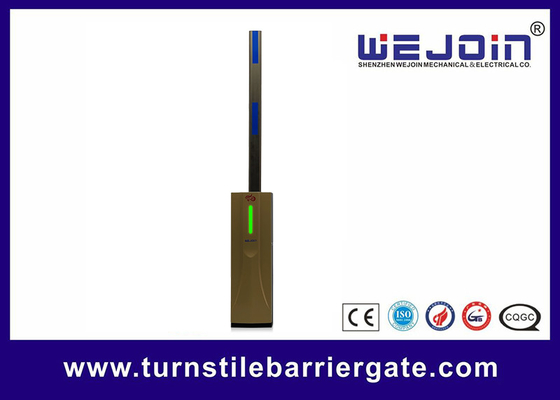

3s Access Control Boom Gates Duty Cycle 100% 4m Straight Automatic Boom Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E40
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 1.8~6s Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel Color: Gold
Application: Parking Lot Warranty: 1 Year
High Light:

Straight access control boom gates


3s access control boom gates


4m automatic boom gate

Product Description

Duty Cycle 100% 3s 4m straight boom barrier gate free maintenance

Model DZE4 Parameter Selection:


Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with straight boom

L≤3M, up speed 1.8S.

L≤3.5M, up speed 2.5S.

L≤4M, up speed 3S.

L≤4.5M, up speed 4S.

L≤5M, up speed 5S.

L≤6M, up speed 6S.

Barrier gate with folding boom

L≤3M (1.5+1.5M), up speed 2S.

L≤4M (2+2M), up speed 4S.

L≤5M (2.5+2.5M), up speed 4S.

Barrier gate with fence boom

Two-levels, L≤3M, up speed 4S.

Two-levels, L≤3.5M, up speed 5S.

Two-levels, L≤4.5M, up speed 6S.

Three-levels, L≤3M, up speed 5S.

Three-levels, L≤3.5M, up speed 6S.


Boom Barrier Basic Features:

1. No spring design, eliminating the need for mechanical leveling, maintenance-free.

2. The boom will not fall off when power off, high safety.

3. Minimal operation, the direction can be exchanged in 30 seconds.

4. Bluetooth control, one-key remote service.

5. The perfect combination of worm gear and gear is reliable.

6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

7. Support RS485 communication or RS485 off-line connection.

8. DC24V power supply is optional.


Technical Data​:

1. Working temperature (motor): -35℃~ + 80℃

2. Power supply input voltage: AC110±10%, or AC220V±10%

3. Controller input voltage: DC24V±10%, 15A

4. Motor power: 240W MAX

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L≥30M

7. Running Speed: 1.8~6 seconds adjustable

8. MTBF: 5,000,000 times


3s Access Control Boom Gates Duty Cycle 100% 4m Straight Automatic Boom Gate 0
