|Material Of Housing:||304 Stainless Steel||Max Lane Width:||900mm|
half height turnstile

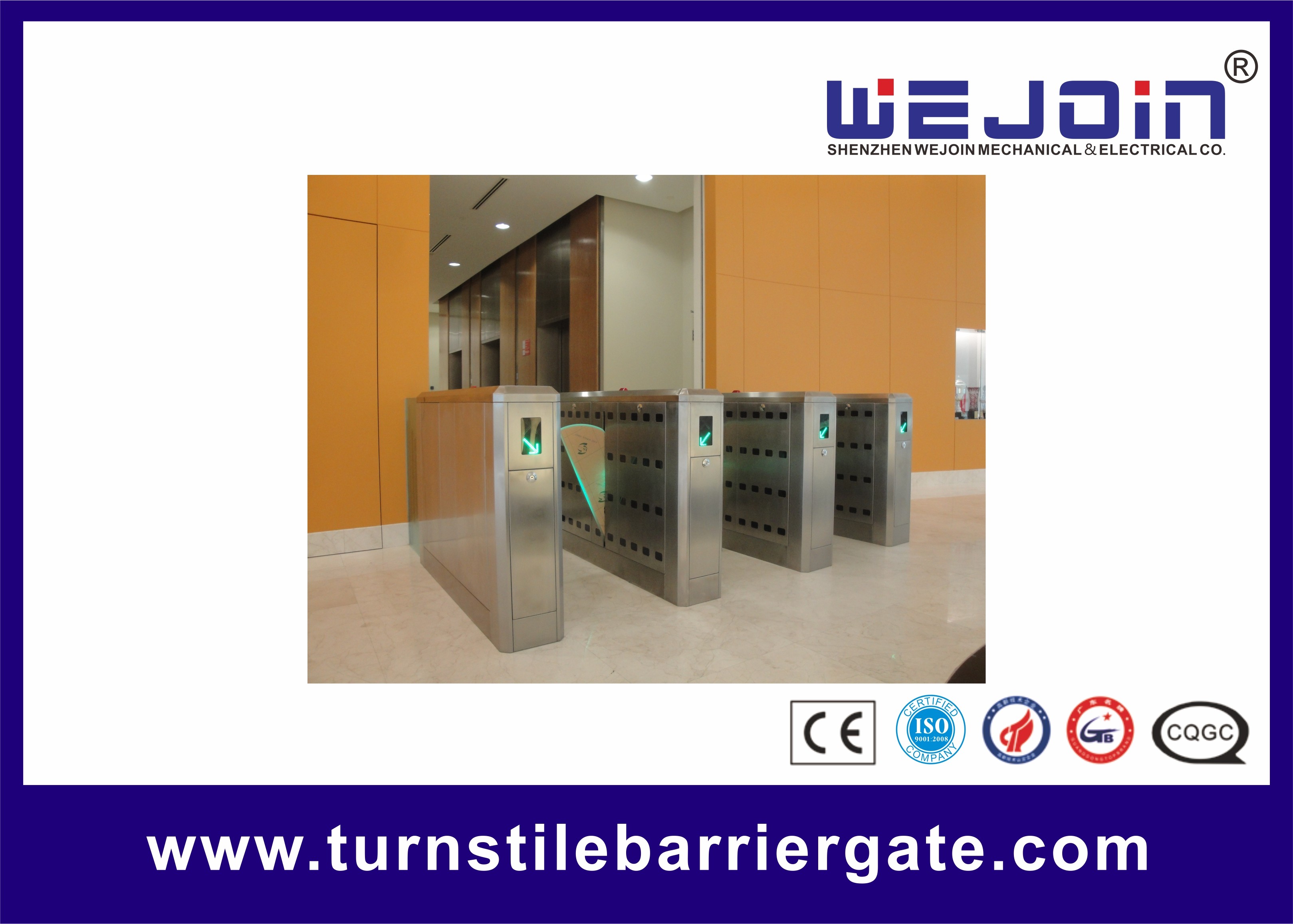

110V Intelligent Flap Barrier With Organic Glass Wing and 304 Stainless Steel
Functions & Features
1. With the function of self-examine and alarm, it is convenient for maintenance and use.
2. Be able to program running status by the small keyboard in the main board
3. Flap door will stop move when it is being blocked, which prevents pedestrians from being nipped and from hurt.
4. Light and sound alarm is generated when the illegal invasion and the tail followed.
5. Arms are automatically locked until the opening signal is received.
6. Arms synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable. (default time is 10sec.)
8. Automatically open the gate when power off and automatically close when power on.
9. Several reader's devices are attachable. (IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine est.)
10. One direction or bi-direction is optional.
11. It can be directly controlled and managed by remote control.
|Stretching-out flap length||275mm|
|The max lane width||600mm|
|Cabinet material||Cold rolled steel & aluminum alloy|
|Material of Flap Door||Organic glass|
|Housing of thickness||1.5mm|
|Normal Life Span||3 million times|
|Communication Interface||Standard RS485(distance less than 1200 meters)|
|Transit speed||30-40 persons/min|
|Time for opening or closing||0.5s|
|Starting time after power on||3s|
|Input interface||Dry contact signal or +12Vor pulse signal with width more than100ms DC12V|
|Transit speed||25~32 persons/min|
|Working environment||Indoor / Outdoor (Shelter)|
|Relative humidity||≤95%, no condensation|
