AC 220 / 110V electric motor for sliding gate Gear Driven 1800KG

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Type: Gate Operators Material: Aluminum Alloy Die-cast
Usage: Villa Gate Function: Driving
Voltage: 220 V / 110 V Certification: CCC
High Light:

sliding gate opener motor


electric gate operators

Product Description

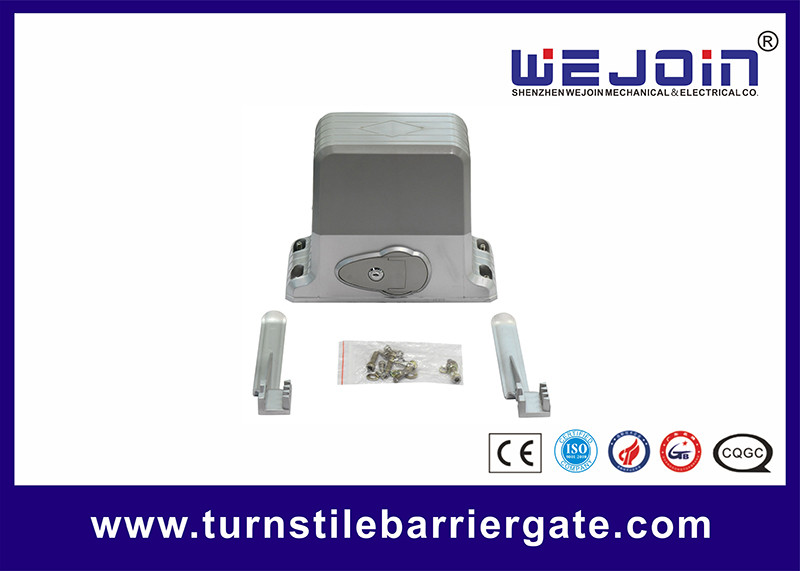

AC 220 / 110V electric motor for sliding gate Gear Driven 1800KG


Sliding gate motor Functions & Features

1. Integrated electromechanical design, no need additional control

2. Electronic soft start

3. Reversing on obstacle

4. Anti-bumping and auto backtracking socket

5. Infrared photocell socket

6. Alarm light socket

7. Wires control and remote control

8. Delaying closing

9. Automatic warm-up


Motor Data

Model: KMP 201/202

Voltage: 220V±10%, 110V±10%

Frequency: 50/60Hz

Current: 2.7A, 5.8A

Motor voltage: AC 220V/110V

Capacitor: (220V) 20µF, 60µF+14µF

Power: 350W

Torque: 35nm

Motor number: M=4

Motor speed: 1350rpm, 1620rpm

Gear speed: 58.8rpm, 70.2rpm

Travel speed: 11m/min, 13.2m/min

Working temperature: -40°c~ 55°c

Overload protection temperature: 130

Relative humidity: ≤90%

Motor making technique: die casting aluminum alloy

Manual Release: yes

Remote distance: >30m

Product weight, approx: 10.19kg, 10.25kg

Max, weight of gate: 1800kg


Electronic Data

Model: KMP 201&202

Soft start: YES

Stop on obstacle (sensitivity adjustable): YES

Auto warming-up (at freezing temperature): YES

Remote control: 418MHz (50m, approx)

Wire control: Available

Auto closing: YES

Vehicle loop detector socket: YES

Photocell socket: YES

Alarm light socket: YES
