| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO,SGS |
| Model Number: | WJTY201 |
| Minimum Order Quantity: | 1 pair |
| Packaging Details: | Wooden |
| Payment Terms: | T/T |
| High Light: | optical turnstile,half height turnstile |
||
|---|---|---|---|

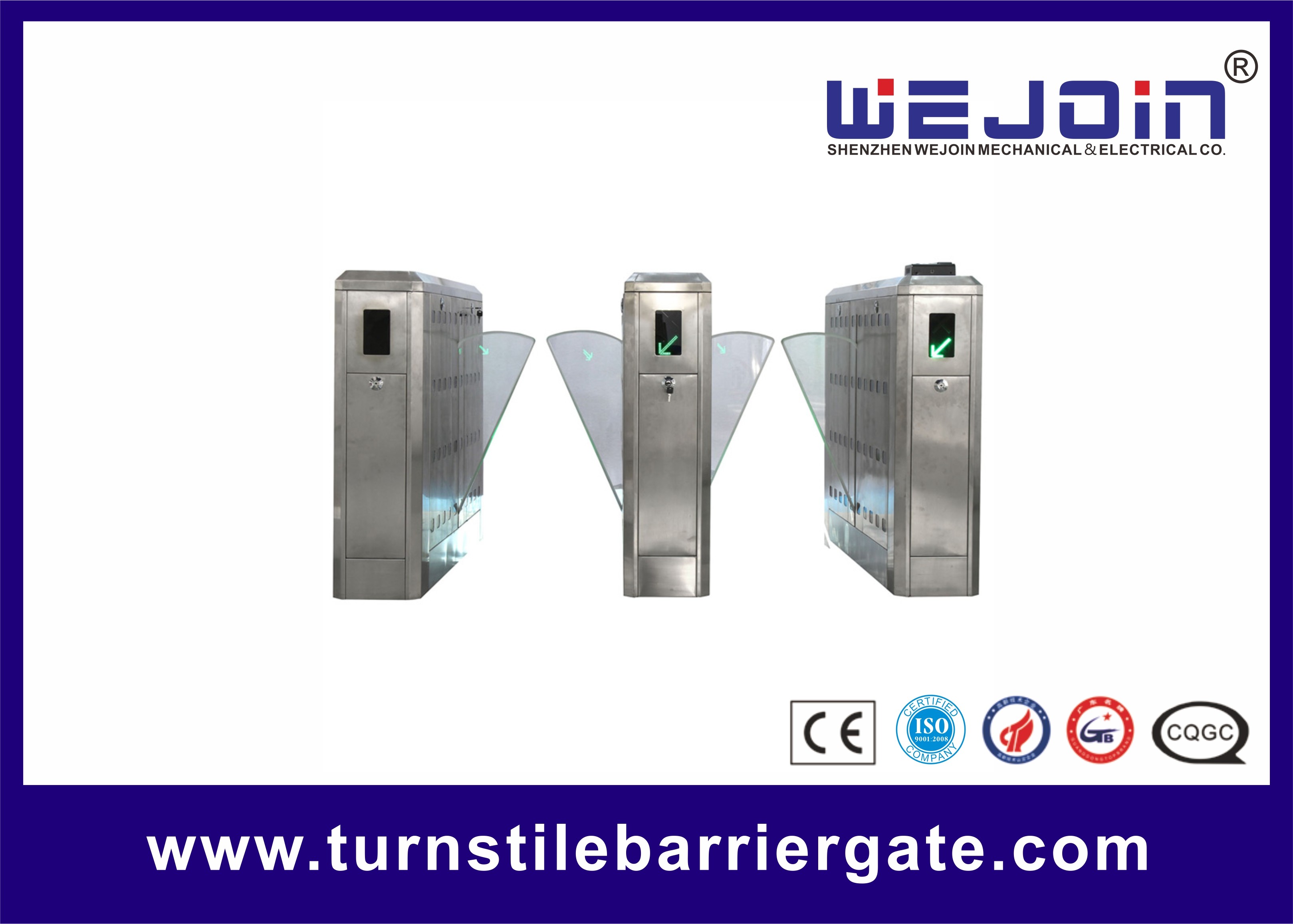

Flap barrier motor can be classified into single motor and double motors. Thesingle one is used for single lane and the double one is used for multi-lanes.
Functions
1. Flap auto reversing when meeting exterior force.
2. Operational mode can be set up through the built-in menu on the control board.
3. Audible and visual alarm in case of unauthorized access.
4. Auti-collision function, the flap will stay close if not receiving the open signal.
5. RS232 and LAN sockets are available to connect the computer.
6. The design is of integration of machinery and electronic structure, with special drive style and reliable
machinery auto locking solution, precise worm gear, and cabinet composite structure.
7. Malfunction self-detection. Which is easy for operation and maintenance.
8. Flap work synchronously.
9. Available for two-way traffic lights, which can prompt the state---pass or no-entry.
10.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
11. Flaps open when power off, and auto-close when power on.
12. Compatible with diverse access control devices.
Applications
Intelligent buildings, hotels, subway stationsHigh class communities, and other high level venues.
| Model | WJTY201 |
| Stretching-out flap length | 275mm |
| The max lane width | 600mm |
| Cabinet material | Cold rolled steel & aluminum alloy |
| Material of Flap Door | Organic glass |
| Housing of thickness | 1.5mm |
| Normal Life Span | 3 millions times |
| Communication Interface | Standard RS485(distance less than 1200 meters) |
| Transit speed | 30-40 persons/min |
| Time for opening or closing | 0.5s |
| Starting time after power on | 3s |
| Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
| Transit speed | 25~32 persons/min |
| Working temperature | -10°C~50°C |
| Working environment | Indoor / Outdoor (Shelter) |
| Relative humidity | ≤95%, no condensation |
