half height turnstile

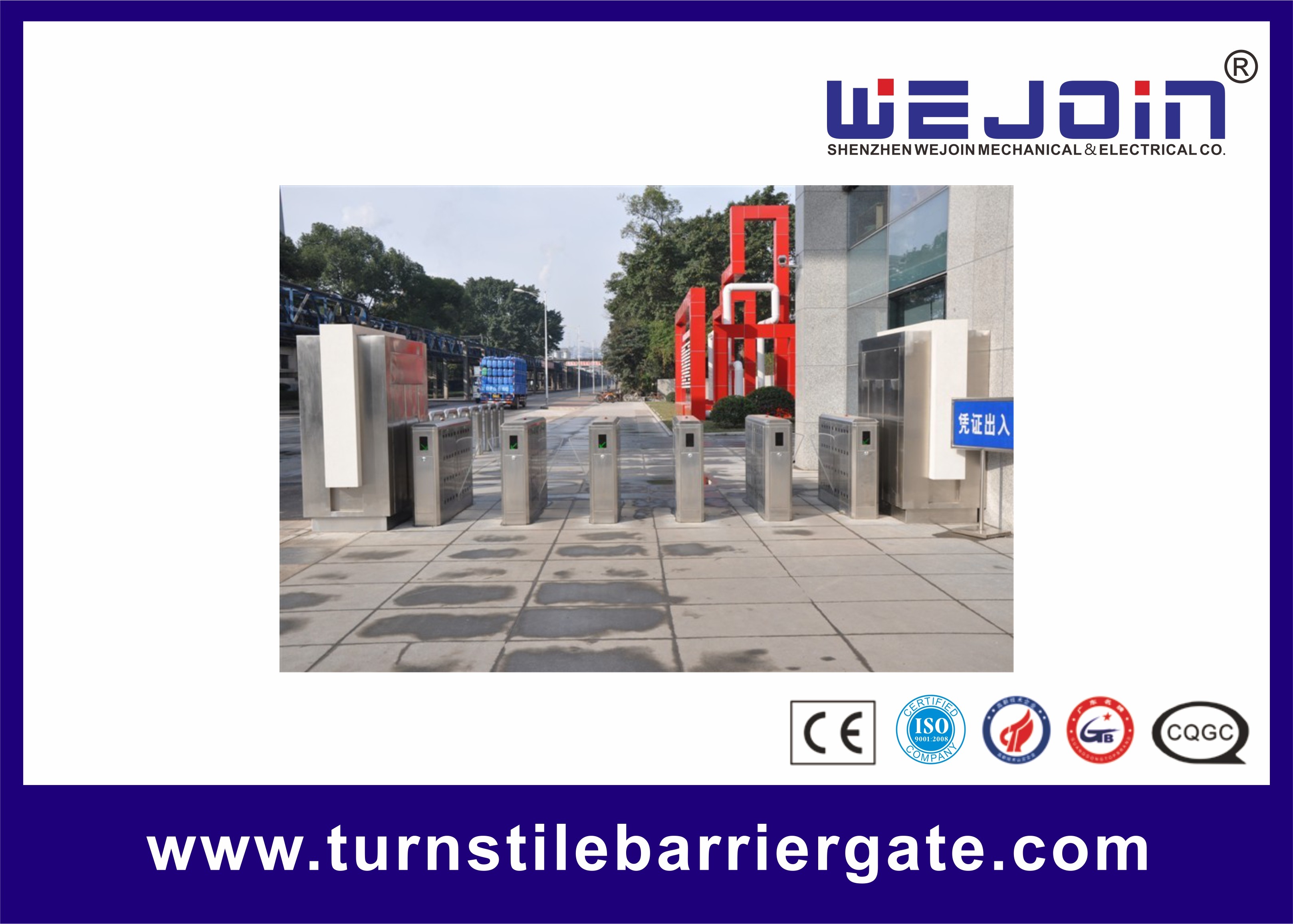

This flap barrier gate is the combination of machinery, electronic, CPU control and variety of personal
authentication identification technology.It can be compatible with IC card, ID card, code bar, and fingerprin
identification unit.It has application in high class communities, intelligent buildings, hotels, subway stations and so on .
1. The design is of integration of machinery and electronic structure, with special drive style and reliable
machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection. Which is easy for operation and maintenance.
3. Operational mode can be set up through the built-in menu on the control board.
4. Flap auto reversing when meeting exterior force.
5. Audible and visual alarm in case of unauthorized access.
6. Auti-collision function, the flap will stay close if not receiving the open signal.
7. Flap work synchronously.
8.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order.
9. Flaps open when power off, and auto-close when power on.
10. Compatible with diverse access control devices.
11. Pedestrian flow directions can be single or double directions.
12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.
13. RS232 and LAN sockets are available to connect the computer.
|Stretching-out flap length||275mm|
|The max lane width||600mm|
|Cabinet material||Cold rolled steel & aluminum alloy|
|Material of Flap Door||Organic glass|
|Housing of thickness||1.5mm|
|Normal Life Span||3 millions times|
|Communication Interface||Standard RS485(distance less than 1200 meters)|
|Transit speed||30-40 persons/min|
|Time for opening or closing||0.5s|
|Starting time after power on||3s|
|Input interface||Dry contact signal or +12Vor pulse signal with width more than100ms DC12V|
|Transit speed||25~32 persons/min|
|Working environment||Indoor / Outdoor (Shelter)|
|Relative humidity||≤95%, no condensation|
