Home /Products/Flap Barrier Gate/304 Stainless Steel Bi-directional Auto-reset Flap Barrier Gate for Reliable Access Control

304 Stainless Steel Bi-directional Auto-reset Flap Barrier Gate for Reliable Access Control

1 pair
MOQ
304 Stainless Steel Bi-directional Auto-reset Flap Barrier Gate for Reliable Access Control
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Flap Barrier
Material: 304 Stainless Steel
Type: Single Core & Double Core
Working Environment: Indoor / Outdoor ( Shelter)
Warranty: 12 Months
Certification: CE,RoHS
Highlight:

optical turnstile

,

half height turnstile
Basic Infomation
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJTY202
Payment & Shipping Terms
Packaging Details: Wooden
Payment Terms: T/T,Western Union
Product Description
Reliable Access Control Flap Barrier Gate
The Reliable Access Control Flap Barrier Gate provides secure and efficient access control with advanced safety features and durable construction.
Product Overview
  • Motor voltage: DC12V (brush motor)
  • Working temperature: -25°C to 50°C
  • Material: 304 stainless steel
  • Function: Automatic
  • Direction: Bi-directional
  • Power supply: AC220V±15%, AC110V±15%
Key Features
  • Flap auto reversing when meeting exterior force
  • Operational mode can be set up through built-in menu on control board
  • Audible and visual alarm in case of unauthorized access
  • Anti-collision function - flap stays closed if not receiving open signal
  • RS232 and LAN sockets available for computer connection
  • Integrated mechanical and electronic structure with special drive style
  • Reliable mechanical auto locking solution with precise worm gear
  • Cabinet composite structure
  • Malfunction self-detection for easy operation and maintenance
  • Synchronized flap operation
  • Two-way traffic lights to indicate pass/no-entry status
  • Auto reset function with adjustable timing
  • Flaps open when power off, auto-close when power on
  • Compatible with diverse access control devices
Technical Specifications
Model WJTY201
Stretching-out flap length 275mm
Maximum lane width 600mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Organic glass
Housing thickness 1.5mm
Normal Life Span 3 million cycles
Communication Interface Standard RS485 (distance less than 1200 meters)
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12V or pulse signal with width more than 100ms DC12V
Working temperature -10°C to 50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation

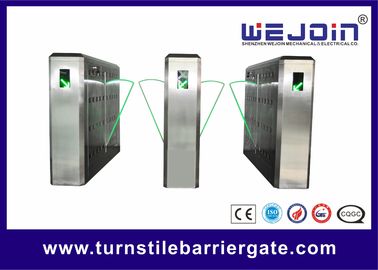

Reliable Access Control Flap Barrier Gate product image showing the stainless steel construction and flap mechanism
