| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO,SGS |
| Model Number: | WJTY202 |
| Minimum Order Quantity: | 1 pair |
| Packaging Details: | Wooden |
| Payment Terms: | T/T |
| Housing Material: | Stainless Housing | Voltage: | AC110V,AC220V |
|---|---|---|---|
| Direction: | Bi-direction | ||
| High Light: | security turnstiles,optical turnstile |
||

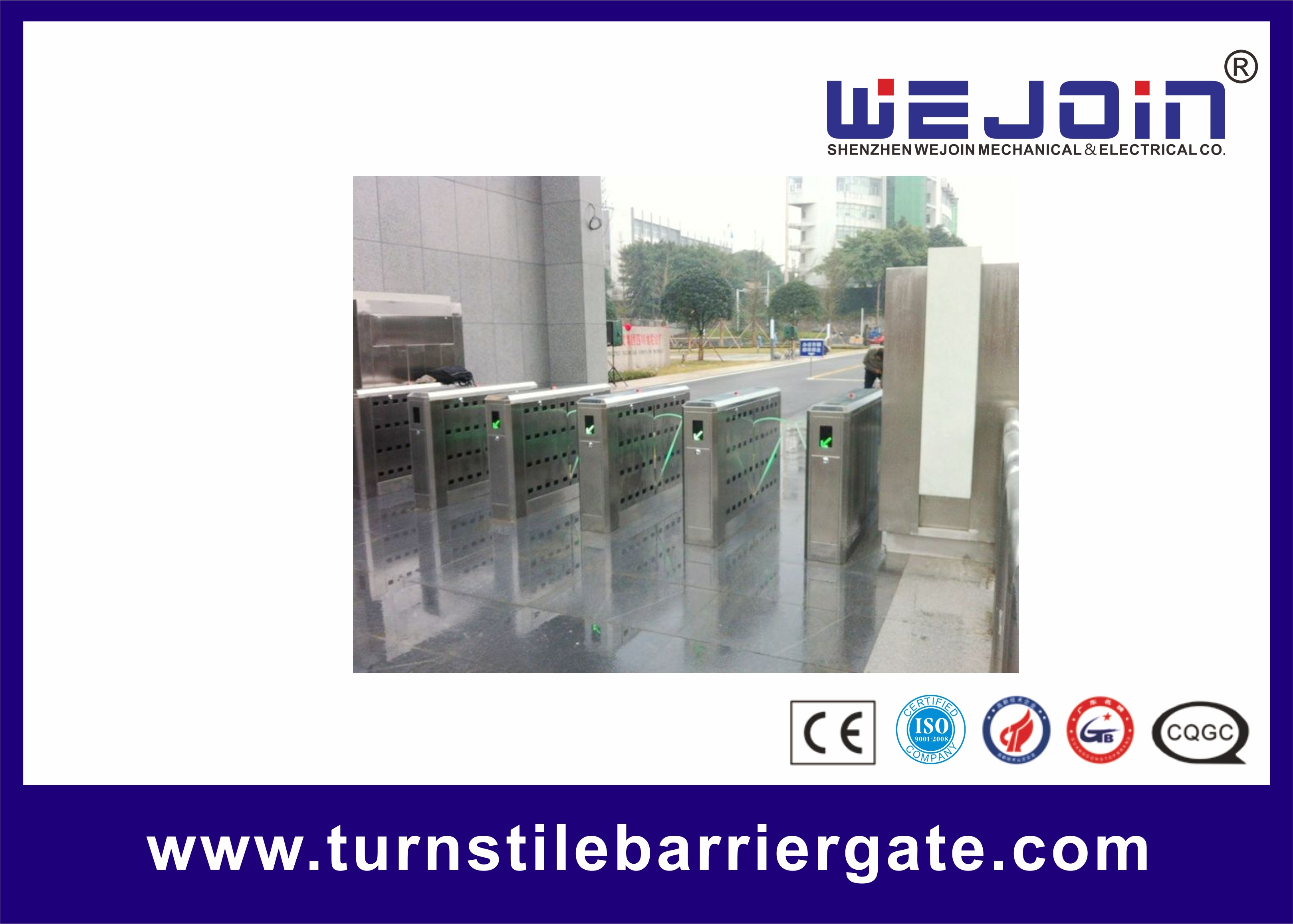

This flap barrier gate is the combination of machinery, electronic, CPU control and variety of personal
authentication identification technology.It can be compatible with IC card, ID card, code bar, and fingerprint
identification unit.WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high
technology. It has application in high class communities, intelligent buildings, hotels, subway stations and so on .
Functions and Features
1. The design is of integration of machinery and electronic structure, with special drive style and reliable
machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection. Which is easy for operation and maintenance.
3. Operational mode can be set up through the built-in menu on the control board.
4. Flap auto reversing when meeting exterior force.
5. Audible and visual alarm in case of unauthorized access.
6. Auti-collision function, the flap will stay close if not receiving the open signal.
7. Flap work synchronously.
8.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order
and the auto-reset time is adjustable.
9. Flaps open when power off, and auto-close when power on.
Specifications
|
Model |
WJTY201 |
|
Cabinet dimension |
1715mm(L)×315mm(W)×1020mm(H) |
|
Stretching-out flap length |
440mm |
|
The max lane width |
900mm |
|
Cabinet material |
cold rolled steel & aluminum alloy |
|
Power supply |
AC220V±15%, AC110V±15% 50/60Hz |
|
Motor voltage |
DC24V (brush motor) |
|
Access device input voltage |
dry contact |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
0.5s ~ 1s |
|
reset time when power on |
2s |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-25°C ~ +50°C |
