| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | ISO,CE |
| Model Number: | TY502SV |
| Minimum Order Quantity: | 1unit |
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS/week |
| Wing: | Organic Glass | Function: | Anti-collision And Crashworthy |
|---|---|---|---|
| Advantage: | High Quality, Service & Factory Price | Operation: | Bi-direction |
| Usage: | Metro Station, Office, Library, Hotel | Trade Terms:: | EXW,CIF |
| High Light: | 280mm Flap Barrier Gate,Servo Motor Flap Barrier Gate,Flap Automatic Barrier Gate |
||

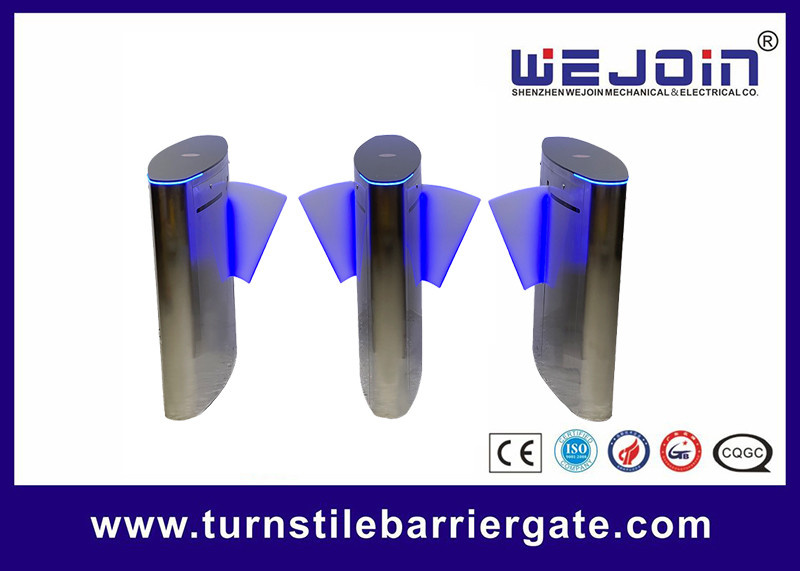

High-gloss 304 flap barrier gate servo motor with arm width of 280mm
Speed Gate Functions & Features:
| 1 | Motor | Self-developed planetary gear reducer structure, driven by DC permanent magnet motor, compact structure, large torque, low noise and wear resistance. |
| 2 | Control System | The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life. |
Flap Barrier Turnstile
Intelligent flap barrier is a brand-new product of WEJOIN Company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN Flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
Flap Barrier Troubleshooting and Solutions
A. Partial or the whole system is no power when power-on
-Check the plug and wire to make sure no connection problem.
-Check the fuse of the control board to make sure no damage.
B. No flap opens and no reaction after input of the open signal
-Check the indicator of the control board and make sure it can receive the open signal.
-Make sure the open signal wire is connected and no damage to the fuse.
C. One flap can open but the other can’t.
-Check the connection of the on-line wire, and make sure connected correctly.
-And make sure the control board of the non-functional one can receive the signal. If it can receive the signal, check the connection again.
