| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | SO 9001:2008, CE, |
| Model Number: | Q2 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Shape: | Bridge-type | Volt: | 220V /110V |
|---|---|---|---|
| Rated Power: | 50W | Roataing Direction: | Double Direction |
| Frequency: | 50Hz/60Hz | Material: | 304 Stainless Steel |
| High Light: | Automatic Tripod Security Gates,50W Automatic Turnstile Gate,Tripod Turnstile Security Gate |
||

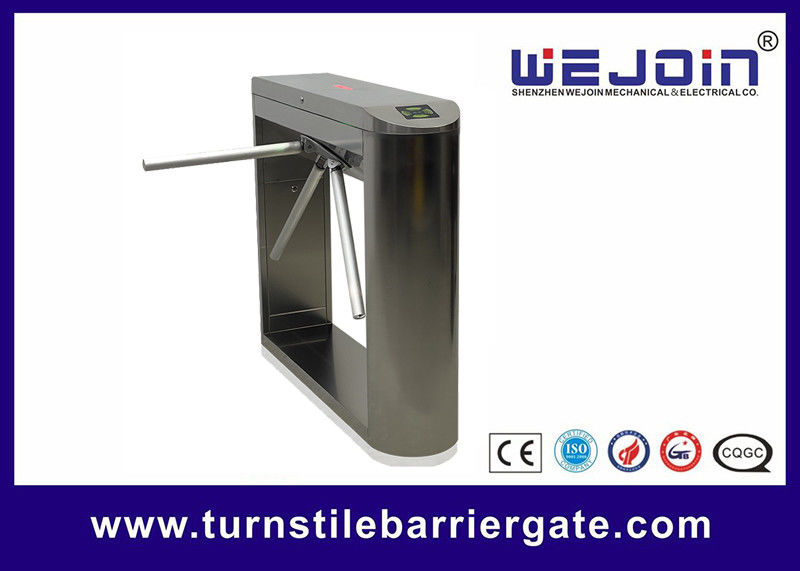

304 Stainless Steel Waist Height Automatic Tripod Turnstile Gate
Tripod Turnstile Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
Turnstile Function and Features:
1. Card reader available, support WEIGAND 26/34 communication card reader.
2. Bi-directional pass/any single direction pass(adjustable).
3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.
4. Traffic light indicator/Pass direction indicator.
Specifications:
|
Model |
Q2 |
|||
|
Manual, Semi or Full-automatic |
Full-automatic |
|||
|
Material of Housing |
304 Stainless Steel |
|||
|
Dimension of Housing |
1200×280×990 |
|||
|
Length of Pole (out of housing) |
490mm |
|||
|
Net Weight |
70kg |
|||
|
Max Load-bearing of Pole |
60kg |
|||
|
Driving Force of Pole |
2KG |
|||
|
Rotating Direction |
Double Direction |
|||
|
Power Supply |
220V±10%, 110V±10% |
|||
|
Frequency |
50/60HZ |
|||
|
Working Voltage of Motor |
DC12V |
|||
|
Rated Power |
50W |
|||
|
Transit Speed |
30~40 persons/min |
|||
|
Working Temperature |
－40°C~55°C |
|||
|
Working Environment |
Indoor / Outdoor (Shelter) |
|||
|
Relative Humidity |
≤95% |
|||
