Gym Waist Height Tripod Turnstile Gate Access Control Systems Bi Directional Pass

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: Q2
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Shape: Bridge-type Volt: 220V /110V
Rated Power: 50W Roataing Direction: Double Direction
Frequency: 50Hz/60Hz Material: 304 Stainless Steel
High Light:

Waist Height Tripod Turnstile Gate

,

Bi Directional Pass Turnstile Barrier Gate

,

Gym Tripod Turnstile Gate


Product Description

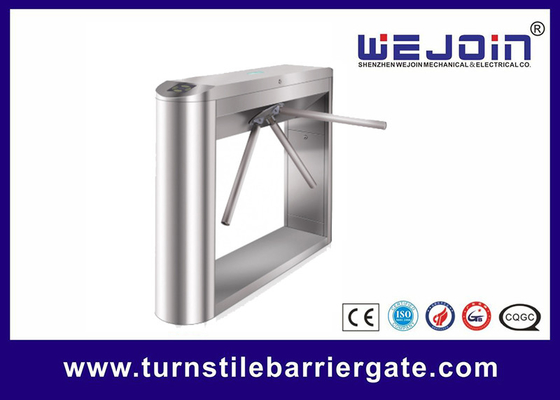

 Access Control Systems Bi Directional Pass Gym Waist Height Tripod Turnstile Gate



Specifications:

Model

Q2

Material of Housing

304 Stainless Steel

Dimension of Housing (L×W×H mm)

1200×280×990

Length of Pole (out of housing)

490mm

Net Weight

70kg

Max Load-bearing of Pole

60kg

Driving Force of Pole

2KG

Rotating Direction

Double Direction

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

50W

Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity

≤95%



Turnstile Function and Features:

1. Card reader available, support WEIGAND 26/34 communication card reader.

2. Bi-directional pass/any single direction pass(adjustable).

3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.

4. Traffic light indicator/Pass direction indicator.

5. Alarm light available(optional function)/Remote control available (optional function)/Counter available (optional function).

6. RS232 socket available which can connect to a computer. It can also connect to a computer by Internet LAN socket (Optional function).



Tripod Turnstile Applications:

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
